Lantronix SGETF1039-110-BR 1000BASE-T to 1000BASE-SX/LX, Multi-Mode LC Connector, 220M
SGETF1039-110
|P6-SGETF39BR
Shop all Lantronix
Lantronix SGETF1039-110-BR 1000BASE-T to 1000BASE-SX/LX, Multi-Mode LC Connector, 220M
SGETF1039-110 | P6-SGETF39BR
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

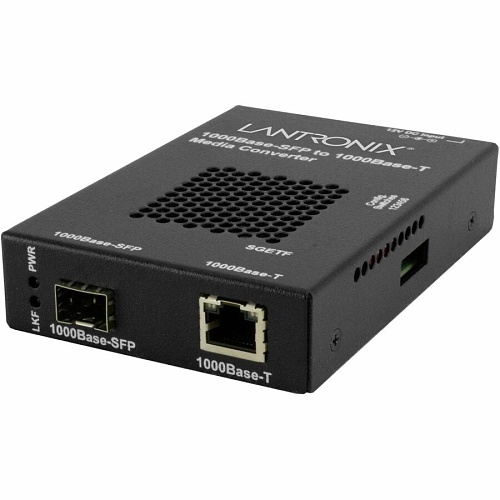

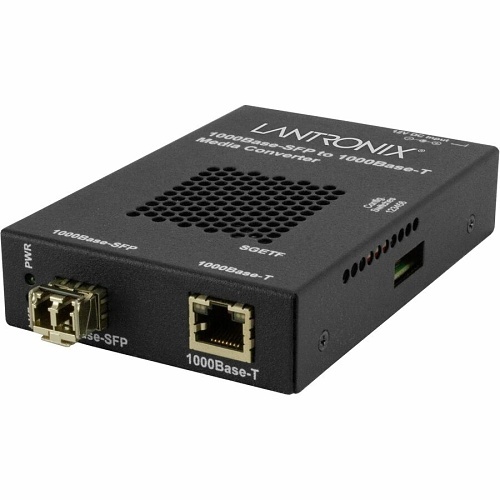

Stand-alone Gigabit Ethernet Media Converter
1000Base-T to 1000Base-SX/LX
The SGETF Series is a stand-alone media converter that provides an interface between 1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 1000Base-T copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Main Features
- Auto-MDI/MDIX
- Copper & Fiber Auto-Negotiation
- Transparent Link Pass Through
- Automatic Link Restoration
- Pause
- Remote Fault Detect
General Information
Name: Lantronix SGETF1039-110-BR 1000BASE-T to 1000BASE-SX/LX, Multi-Mode LC Connector, 220M
Category: Lantronix, Data Comm & Networking, Network Adapters, Media Converters
UPC Code: 783384248564
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-SGETF39BR Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SGETF1039110BR Maximum Distance 1804.46' Product Model SGETF1039-110 Product Name SGETF1039-110 Transceiver/Media Converter Product Series SGETF Product Type Transceiver/Media Converter
Fiber Optic Mode Multimode Media Type Supported Optical Fiber, Twisted Pair Power Consumption 5.40W
TAA Compliant Yes
Network (RJ-45) Yes Number of LC Ports 1 Number of Network (RJ-45) Ports 1 Number of Ports 2
Fiber Optic Wavelength 850 nm Network Technology 1000Base-SX, 1000Base-T
Ethernet Technology 10 Gigabit Ethernet
Depth 4.8" Height 1" Weight 2lb Width 3.3"
Input Voltage 120V AC, 230V AC Power Source AC, DC
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents SGETF1039-110 Transceiver/Media ConverterPower Supply - Brazil
