Lantronix SGFEB1040-330-OZ Dual 10/100/1000Base-T to 1000Base-X SFP with Power Supply, 10'
SGFEB1040-330 | P6-SGFEB2341
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

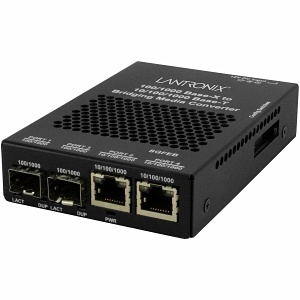

Stand-alone Gigabit Ethernet Media and Rate Converter
10/100/1000Base-T to 1000Base-SX/LX
The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
Main Features
- Auto Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far End Fault (FEF)
- Remote Fault Detect
- Provides rate conversion while also increasing transmission distances
- Supports multimode or single mode fiber
- Versions available with fixed SC or LC optics, as well as modular SFP optics
- Long haul transmission distances are supported with a variety of SFP modules
- SFP ports support dual speeds: 100/1000/SGMII
General Information
Name: Lantronix SGFEB1040-330-OZ Dual 10/100/1000Base-T to 1000Base-X SFP with Power Supply, 10'
Category: Lantronix, Video Surveillance, Data Comm & Networking, Networking Devices, Media Converters & Transceivers, Media Converters, Media Converters
UPC Code: 783384249264
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P6-SGFEB2341 Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SGFEB1040330OZ Packaged Quantity 2 Product Model SGFEB1040-330 Product Name SGFEB1040-330 Transceiver/Media Converter Product Series SGFEB Product Type Transceiver/Media Converter Weight 2lb
-
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 2.20W
-
TAA Compliant Yes
-
Expansion Slot Type SFP Number of SFP Slots 2 Number of Total Expansion Slots 2
-
Network (RJ-45) Yes Number of Network (RJ-45) Ports 2 Number of Ports 2
-
Network Technology 10/100/1000Base-T, 100/1000Base-X
-
Ethernet Technology Gigabit Ethernet
-
Depth 4.8" Height 1" Width 3.3"
-
Input Voltage 24V DC, 7.5V DC Power Source AC Adapter
-
Limited Warranty Lifetime
-
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents SGFEB1040-330 Transceiver/Media ConverterPower Supply - Australia
