Panduit DNF18-111FIB-C Female Disconnect Nylon Fully Insulated Connectors
DNF18-111FIB-C
|P9-18111FIBC
Shop all Panduit
Panduit DNF18-111FIB-C Female Disconnect Nylon Fully Insulated Connectors
DNF18-111FIB-C | P9-18111FIBC
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

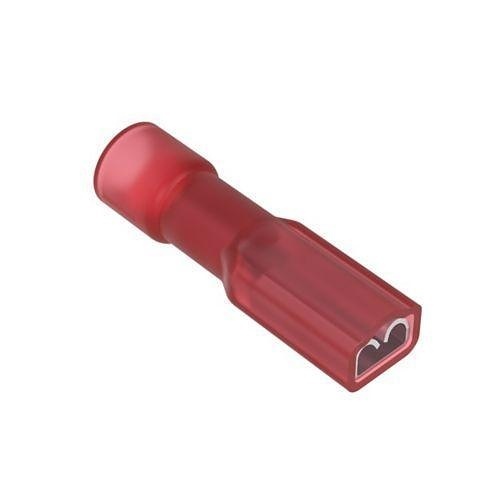

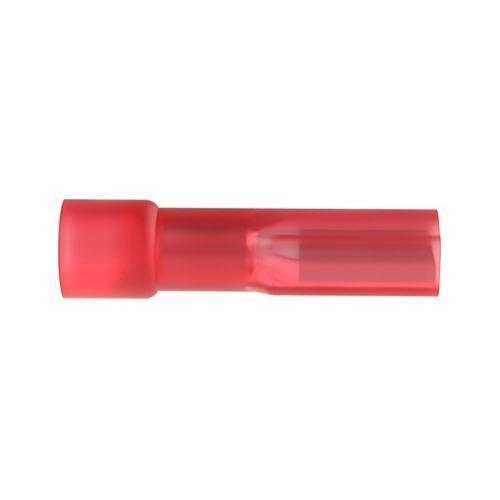

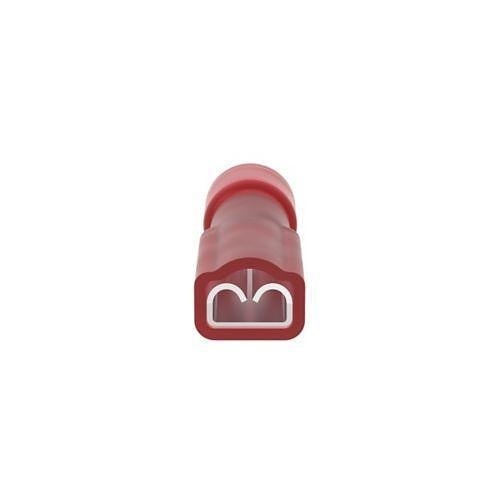

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.110 x 0.020" (2.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.71" (18.0 mm) long and 0.19" (4.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
Main Features
- Features terminal connector
- Contacts are plated with Tin
General Information
Name: Panduit DNF18-111FIB-C Female Disconnect Nylon Fully Insulated Connectors
Category: Panduit, Data Comm & Networking, Cable Connectors, Splice Connectors
UPC Code: 074983826759
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-18111FIBC Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number DNF18-111FIB-C Packaged Quantity 100 Product Name Terminal Connector Product Type Terminal Connector
American Wire Gauge 18AWG Contact Plating Tin
Color Red Width 0.2"
Length 0.71"
Limited Warranty 1-Year
Environmentally Friendly Yes Features Flame Retardant
