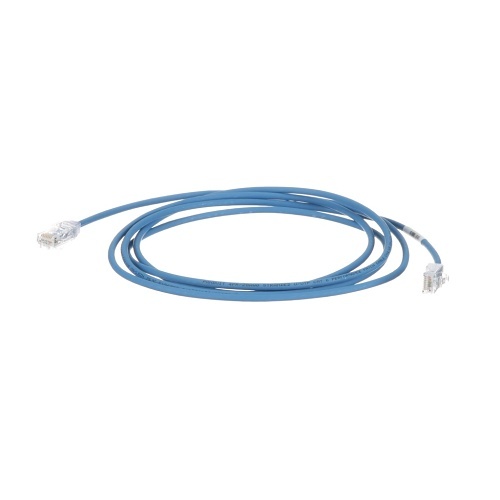

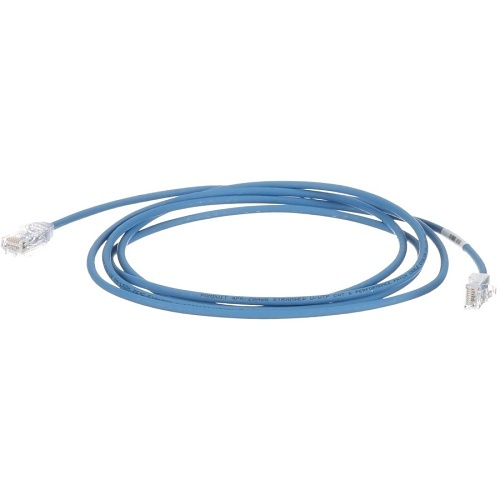

Panduit UTP28SP2MBU-Q CAT6 Cable 28 AWG UTP, CM/LSZH, TX6 Modular Plugs, 2m, Blue
UTP28SP2MBU-Q
|P9-28SP2MBUQ
Shop All Panduit
Panduit UTP28SP2MBU-Q CAT6 Cable 28 AWG UTP, CM/LSZH, TX6 Modular Plugs, 2m, Blue
UTP28SP2MBU-Q | P9-28SP2MBUQ
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Category 6/Class E, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Main Features
- Smaller diameter, flexible cable design : Tight bend radius enables improved cable routing and management in high density applications. Smaller cable diameter allows twice the amount of cords to be routed through cable managers and pathways compared to traditional Category 6 patch cords. Reduced cable diameter facilitates improved air flow, cooling, resulting in lower operating costs than traditional Category 6 patch cords
- Category 6 component compliance : Now Category 6 component compliant per the new ANSI/TIA-568.2-D standard
- 100% performance tested for wire map, NEXT and return loss : Confidence that each patch cord delivers critical electrical component level performance. Centered de-embedded plug performs in center of ANSI/TIA-568.2-D Category 6 component range, ensuring interoperability and optimum performance
- Integral pair manager : Optimizes performance and consistency by reducing untwist at plug
- Patented tangle-free latch : Prevents snags and provides easy release, saving time on frequent moves, adds, and changes
- Flexible stranded cable : U/UTP stranded 28 AWG copper cable with a nominal diameter of 0.150 in. (3.8mm) allows for high density installations and superior panel cable management
- Identification label : Provides identification of performance level, length, and quality control number for traceability
- Robust construction : Plug contact plated with 50 micro inches of gold and rated to 2500 mating cycles
- Variety of cable colors and lengths : Meets individual length and color-coding requirements for greater system flexibility
- Available plug lock-in devices (optional) : Plug lock-in and latch guard devices to prevent unauthorized or unintended removal of patch cords
General Information
Name: Panduit UTP28SP2MBU-Q CAT6 Cable 28 AWG UTP, CM/LSZH, TX6 Modular Plugs, 2m, Blue
Category: Panduit, Wire & Cable, Network Patch Cords, Category 6 Patch Cords
UPC Code: 74983338108
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-28SP2MBUQ Application/Usage Supports 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 155/622 Mb/s, 1.2 Gb/s ATM, digital/broadband/baseband video, voice/data systems, and VoIP. Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number UTP28SP2MBU-Q Package Type Pack Packaged Quantity 25 Product Line TX6-28 Product Name UTP28SP2MBU-Q Patch Cord Product Type Network Cable
American Wire Gauge 28AWG Cable Type Category 6 Contact Plating Gold Device Supported Network Device Jacket Type Halogen-Free Jacket, Standard Shielding No Solid or Stranded Stranded
Data Transfer Rate 1.00Gbps
Cable Length 6.56' Color Blue Jacket Material LSZH Material Copper
Environmentally Friendly Yes Features Booted, Flexible, Locking Latch, PoE, PoE+, PoE++, Strain Relief, Stranded, Tangle-free
