Panduit FSCS2/9SOCPXAQ Fiber SC-PC Splice-On Connector for 250/
FSCS2/9SOCPXAQ
|P9-29SOCPXQ
Shop All Panduit
Panduit FSCS2/9SOCPXAQ Fiber SC-PC Splice-On Connector for 250/
FSCS2/9SOCPXAQ | P9-29SOCPXQ
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

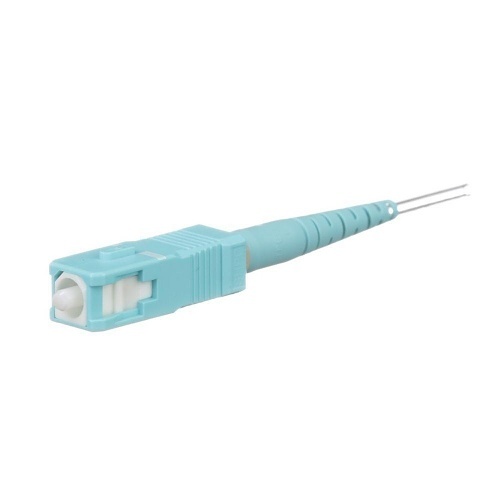

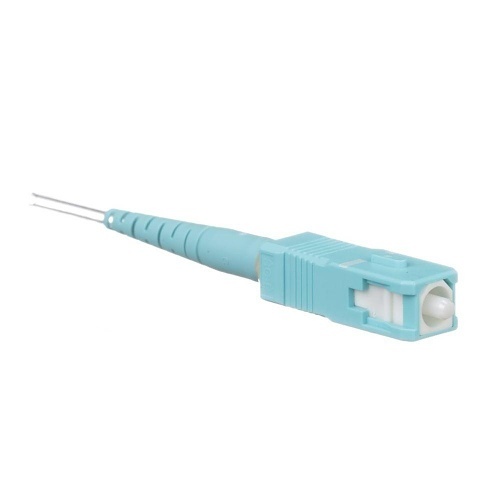

The Fusion Splice SC-PC Fiber Optic Connector is a multimode 50/125m OM3 / OM4 / OM5 simplex fiber connector, intended for 900m tight-buffered or 250m loose-tube fiber installation. Field termination can be done in about 2 minutes on several common splice machine brands. The connector consists of a ferrule assembly with a bare fiber stub, a front housing, a rear housing with integral boot, splice protection sleeve, and outer housing shroud.
Main Features
- Multimode 50/125m OM3/OM4/OM5 compatibility
- Simplex fiber connector for 900m or 250m fibers
- Quick field termination in 2 minutes
- Compatible with common splice machines
- Includes ferrule assembly with fiber stub
- Comes with splice protection sleeve
- Integral boot for secure installation
General Information
Name: Panduit FSCS2/9SOCPXAQ Fiber SC-PC Splice-On Connector for 250/
Category: Panduit, Data Comm & Networking, Cable Connectors, Fiber Optic Cable Connectors
UPC Code: 613056574045
Country of Origin: .Country of origin is subject to change.
Specifications
ADI Part Number P9-29SOCPXQ Brand Name Panduit Manufacturer Part Number FSCS2/9SOCPXAQ Product Name Fusion Splice SC-PC Simplex 50µm OM3/4 Connector Product Type Connector
Color Aqua
Environmental Certification RoHS Environmentally Friendly Yes
