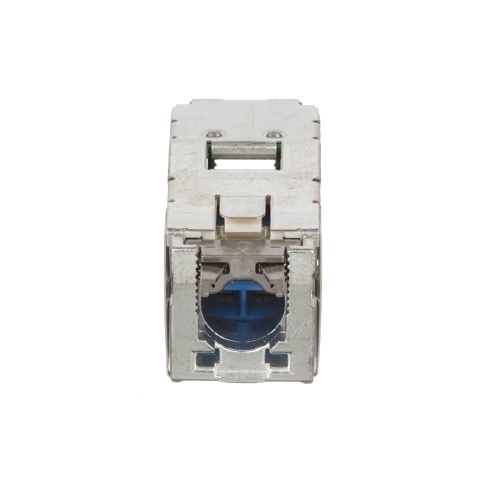

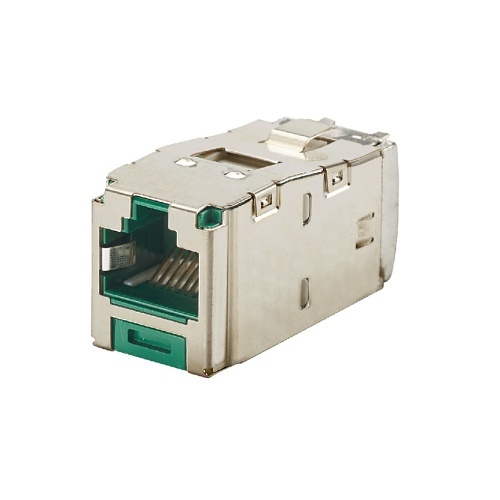

Panduit CJS6X88TGGRY Mini-Com STP RJ45 Cat6A TG Jack Module, Green
CJS6X88TGGRY | P9-6X88TGGR5
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Category 6A/Class E A , 8-position, shielded jack module shall terminate 4-pair, 22 - 26 AWG, 100 ohm shielded twisted pair cable and shall not require use of a punchdown tool. Shielded jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded blue to designate Category 6A performance and shall include a universal label coded for T568A and T568B wiring schemes. The Mini-Com ® TX6A ™ 10Gig ™ Shielded Jack Module must be installed as part of the TX6A ™ 10Gig ™ Shielded Copper Cabling System to achieve IEEE 10GBASE-T certified performance.
Main Features
- Mini-Com STP RJ45 Cat6A TG Jack Module
- Terminates 4-pair, 22-26 AWG cables
- No punchdown tool required
- Forward motion termination method
- Maintains cable pair geometry
- Color-coded blue for Cat6A
- Universal label for T568A/B
- Part of TX6A 10Gig Shielded System
- IEEE 10GBASE-T certified
General Information
Name: Panduit CJS6X88TGGRY Mini-Com STP RJ45 Cat6A TG Jack Module, Green
Category: Panduit, Data Comm & Networking, Cable Connectors, Inserts & Adapters
UPC Code: 074983945184
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-6X88TGGR5 Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number CJS6X88TGGRY Package Length 0 Packaged Quantity 1 Product Line Mini-Com Product Name Mini-Com S/FTP Network Connector Product Type Network Connector
Connector Plating Tin Contact Plating Gold Impedance 100 ohms Material ABS, Phosphor Bronze, Plastic Shielding Yes
Connector Type RJ45
Color Blue, Green Depth 1.5" Height 0.7"
Environmentally Friendly Yes Features EMI Protection, Stranded
