Product Overview

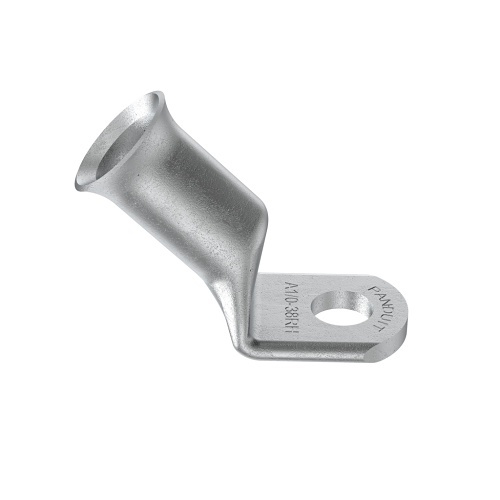

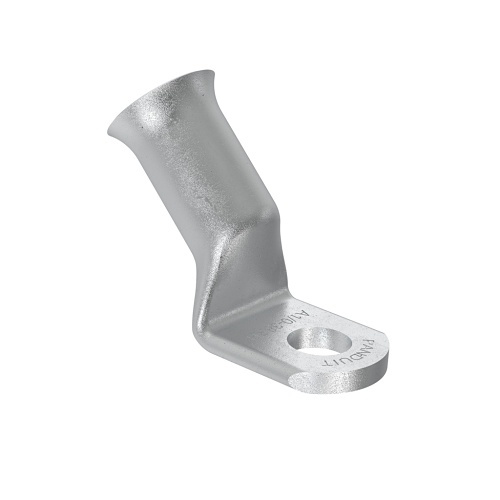

The A1/0-38RH-C Copper Compression Battery Cable Lug, 1/0 AWG, 3/8" Stud with a 45 degree bend are tin plated to meet ASTM Class C specification for corrosion resistance. Manufactured with a standard barrel without an inspection window preventing contaminents from entering. Flared barrel entry for ease of inserting flex conductors. High pullout strength for heavy duty applications and military pullout strength requirements when using Panduit recommended tooling.
Main Features
- Copper compression battery cable lug
- 1/0 AWG size
- 3/8" stud
- 45 degree bend
- Tin plated to meet ASTM Class C for corrosion resistance
- Standard barrel without inspection window to prevent contaminants
- Flared barrel entry for ease of inserting flex conductors
- High pullout strength for heavy duty applications
General Information
Name: Panduit A1/0-38RH-C Battery Cable Lug, 4-Pack, 3.375"
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 613056793217
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-A1038RHC Brand Name Panduit Manufacturer Part Number A1/0-38RH-C
Length 1.93"
