Panduit CCAL1H1316-X Cable Cleat, Aluminum, 1-Hole Clamp Type
CCAL1H1316-X | P9-AL1H1316X
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

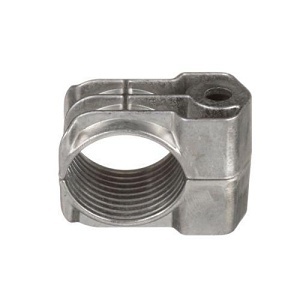

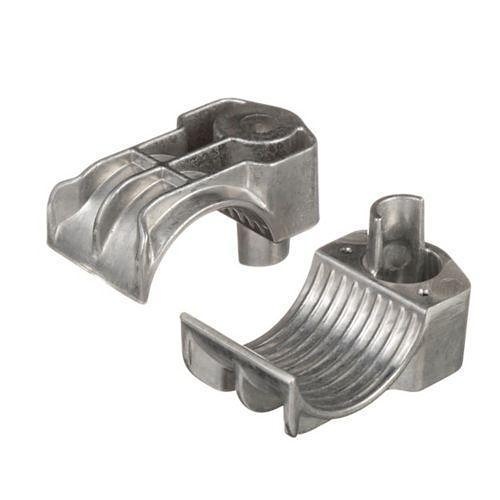

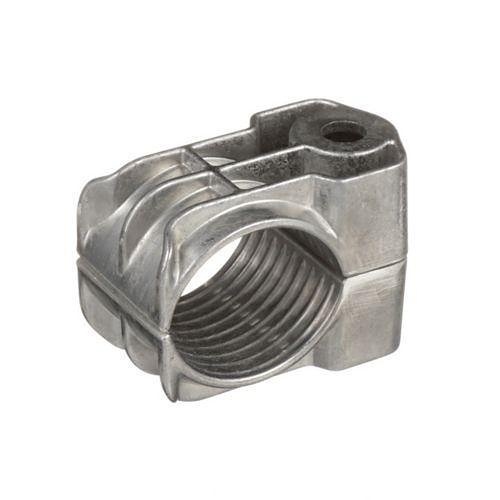

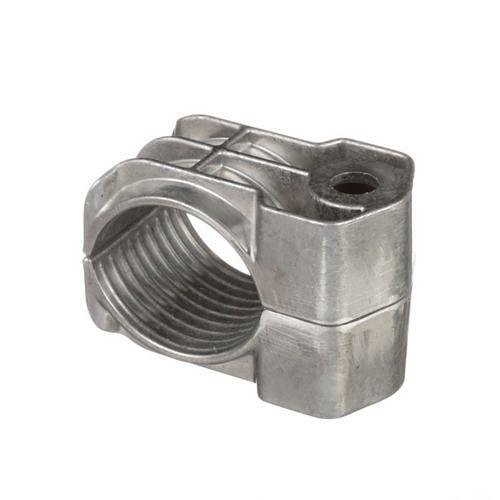

The CCAL1H1316-X One-Hole Aluminum Cable Cleat is ideal for lower to medium short circuit faults in less corrosive environments. The cable cleat is certified to IEC 61914;2015, tested up to 93.4kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 13–16mm and installs direct to the cable tray rung via fixing hole and user-supplied M10 bolt. Insulating spacers and washers sold separately for protection against galvanic corrosion.
Main Features
- Certified to IEC 61914;2015
- Tested up to 93.4kA peak fault current
- Retains cables during short circuit faults
- Compatible with cable diameter of 13–16mm
- Installs direct to cable tray rung via fixing hole
- Uses user-supplied M10 bolt for installation
- Includes 1-Hole Clamp Type design
- Made of aluminum for corrosion resistance
General Information
Name: Panduit CCAL1H1316-X Cable Cleat, Aluminum, 1-Hole Clamp Type
Category: Panduit, Tools & Hardware, Tools, Clips & Clamps
UPC Code: 613056733473
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-AL1H1316X Brand Name Panduit Manufacturer Part Number CCAL1H1316-X
Material Aluminum
Indoor/Outdoor Indoor, Outdoor
