Key Features
- Adjustable depth: Supports equipment mounting depths from 18" , 21.5" , and 25" to provide greater flexibility with a single part number
- Welded steel construction: ETL approved, meets UL2416 with a tested load capacity of 150 lbs for the 9 and 12 RU, 200 lbs for the 18 RU
- Self-squaring: Design allows for single person installation
Key Features
- Adjustable depth: Supports equipment mounting depths from 18" , 21.5" , and 25" to provide greater flexibility with a single part number
- Welded steel construction: ETL approved, meets UL2416 with a tested load capacity of 150 lbs for the 9 and 12 RU, 200 lbs for the 18 RU
- Self-squaring: Design allows for single person installation
Key Features
- Adjustable depth: Supports equipment mounting depths from 18" , 21.5" , and 25" to provide greater flexibility with a single part number
- Welded steel construction: ETL approved, meets UL2416 with a tested load capacity of 150 lbs for the 9 and 12 RU, 200 lbs for the 18 RU
- Self-squaring: Design allows for single person installation

Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents

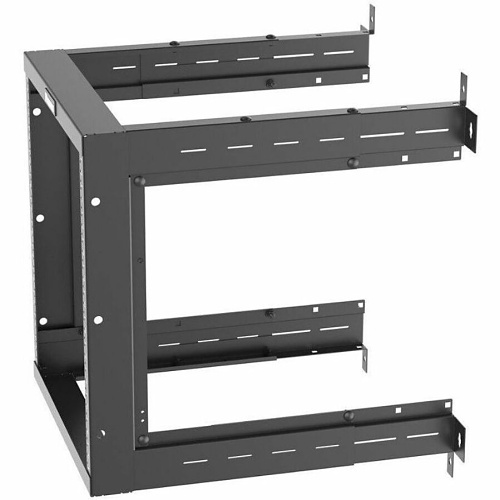

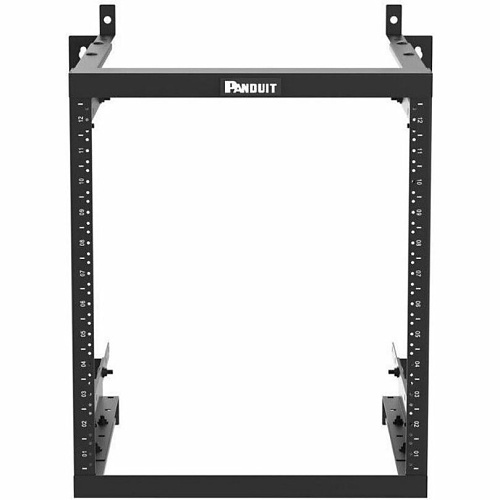

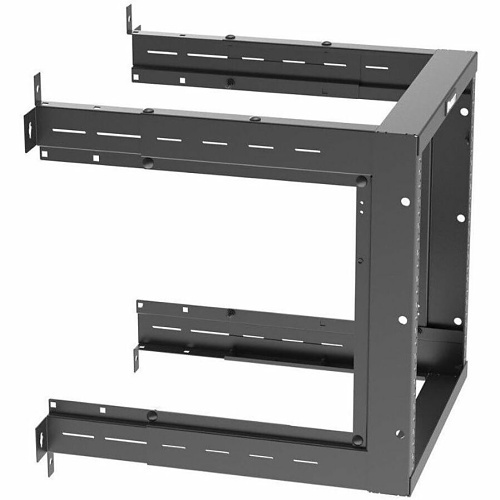

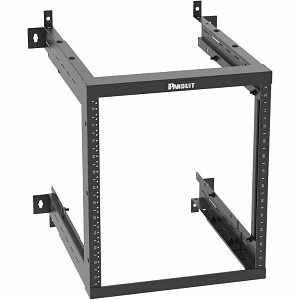

Product Overview
The PanZone® 12RU Adjustable Depth Wall Mount Rack supports equipment mounting depths from 18" , 21.5", or 25" to provide greater flexibility with a single part number. Side rails offer slots that shall accept Tak-Ty or Bend Radius Control accessories for cable management. The construction method shall allow for single person installation. The equipment mounting rails shall be #12-24 threaded style mounting and include printed rack unit numbering from bottom up. Load rating of 150lbs, black.
Main Features
- Adjustable depth: Supports equipment mounting depths from 18" , 21.5" , and 25" to provide greater flexibility with a single part number
- Welded steel construction: ETL approved, meets UL2416 with a tested load capacity of 150 lbs for the 9 and 12 RU, 200 lbs for the 18 RU
- Self-squaring: Design allows for single person installation
- Key features: Horizontal slots on the adjustable wall attachment brackets are compatible with Tak-Ty and allow for easy front to back cable management
- Color options: Available in Black
- Numerical rack unit identification: Allows for quick location of rack spaces speeding installation of rack mount items, racks are numbered from bottom up
- Fully bonded structure: Paint piercing hardware electrically bonds the rack when assembled, eliminating the need for additional bonding components
- Integrated masked grounding locations: Two masked grounding locations available for customizable configurations
General Information
Name: Panduit AWMR12 Rack Cabinet and Frame
Category: Panduit, Data Comm & Networking, Pro AV, Racks & Enclosures, Commercial Furniture & Racks, Rack Cabinets & Frames, Rack Cabinets & Frames
UPC Code: 613056857537
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P9-AWMR12 Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number AWMR12 Product Name Adjustable Depth Wall Mount Rack, 12RU, Black Product Type Rack Frame
-
Application/Usage Equipment Color Black Depth 25" Form Factor Wall Mount Height 22.4" Material Steel Maximum Weight Capacity 150 lb Rack Height 12U Width 20.3"
-
Features Adjustable Depth, Cable Management
