Product Overview

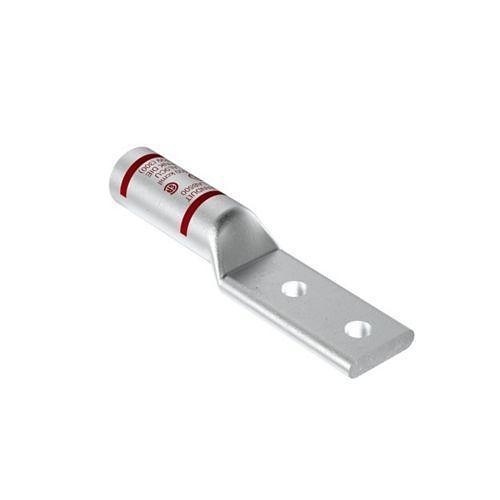

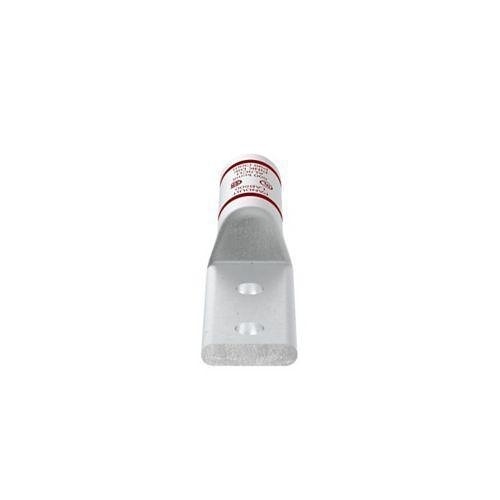

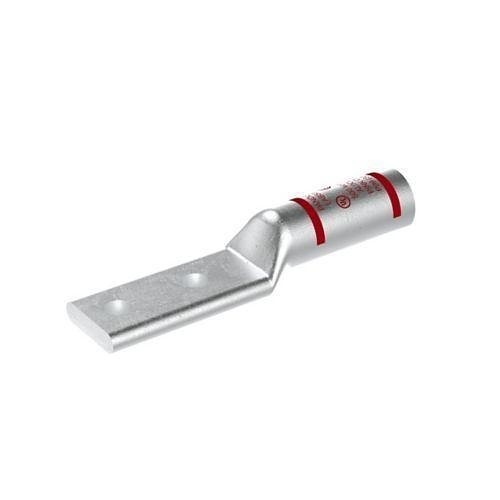

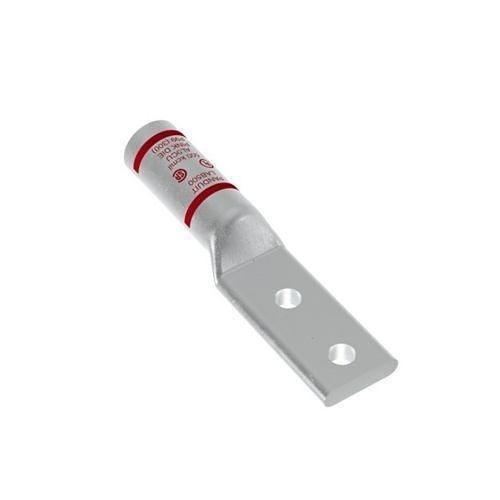

The LAB500-12-24R Aluminum Compression Connector Lug, two hole, is manufactured from high conductivity thick wall aluminum with an enclosed barrel for harsh environments. The color-coded barrels are marked with Panduit and specified competitor die index numbers for proper crimp die selection. Factory pre-filled with joint compound and tin-plated to inhibit corrosion. cULus Listed up to 35 kV and temperature rated to 90°C.
Main Features
- Made from high conductivity thick wall aluminum
- Two-hole design for secure connection
- Enclosed barrel for harsh environment protection
- Color-coded barrels with Panduit and competitor die index numbers
- Factory pre-filled with joint compound
- Tin-plated to inhibit corrosion
- cULus Listed up to 35 kV
- Temperature rated to 90°C
General Information
Name: Panduit LAB500-12-24R Aluminum Compression Lug, 2-Hole, 500 KC
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 613056858053
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-B5001224R Brand Name Panduit Manufacturer Part Number LAB500-12-24R
Length 7.31"
