Overview
Specifications
Documents
Product Overview

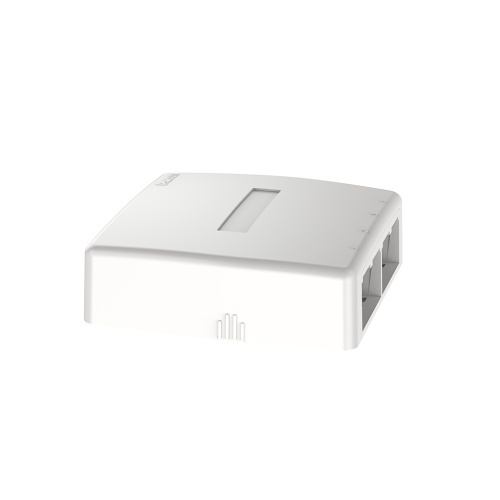

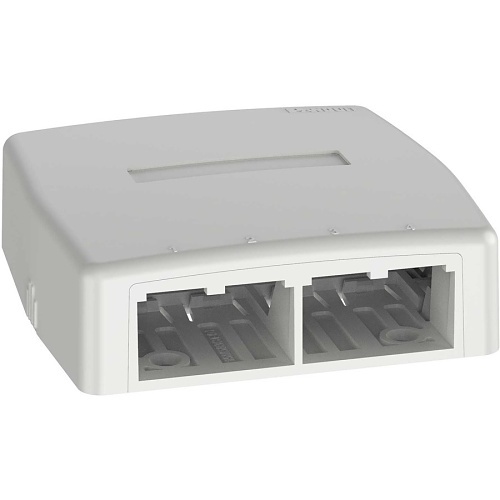

The Mini-Com® Surface Mount Box is plenum rated and accepts four Mini-Com Modules. Cover has a quick release mechanism that allows easy access to the modules; cover can be secured with a screw. The box offers a variety of mounting options using adhesive tape, screws, or optional magnet. The box includes a label pocket for easy identification and is off white.
Main Features
- Quick release cover :Can be removed by hand, does not require tool
- Modular :Accepts most Mini-Com Modules, for easy moves, adds, and changes
- Low profile design: Smaller profile offers a less conspicuous look
- Raceway breakouts :Compatible with specific raceway, conceals cable entering the box
- Cover screw: Boxes with label pocket provide a screw that secures the cover to the base
- Labels and label covers :Select boxes include a label pocket to meet TIA/EIA-606B labeling standards
- Magnet pockets:Magnet can be used with magnet pocket for optional mounting (CBX1-A does not include a magnet pocket); CBM-X for use with standard boxes
- Shuttered feature: Achieved by installing jack modules with spring shuttered door
- UL 2043 :Select products^ are suitable for installations in air handling spaces
General Information
Name: Panduit CBXQ4IW-A Surface Mount Mounting Box
Category: Panduit, Data Comm & Networking, Wall Plates & Mounts, Surface Mounting Boxes
UPC Code: 613056169456
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P9-CBXQ4IWA Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number CBXQ4IW-A Packaged Quantity 1 Product Line Mini-Com Product Name Mini-Com Surface Mount Box, 4 Port, Off White Product Type Mounting Box
-
Application/Usage Furniture, Surface, Wall Color White Height 1.2" Material ABS Width 3.8"
-
Compatibility Panduit Raceways: LD3 LDPH3 LD5 LDPH5 LD10 LDPH10 Environmentally Friendly Yes Features Quick Release Mechanism Package Contents - 1 x Box Cover
- 2 x Box Base
- 3 x 2-PLT1M PAN-TY
- 4 x Label and Label Cover
- 5 x Screw (Used to Secure Cover to Base)
- 6 x 2-Strip of 3.00: X .75" Foam Tape for Mounting
