Panduit LCDX4/0-38D-X Compression Connector Lug, 2-Hole, Flex, 4/0AWG, Copper
LCDX4/0-38D-X
|P9-CDX4038DX
Shop All Panduit

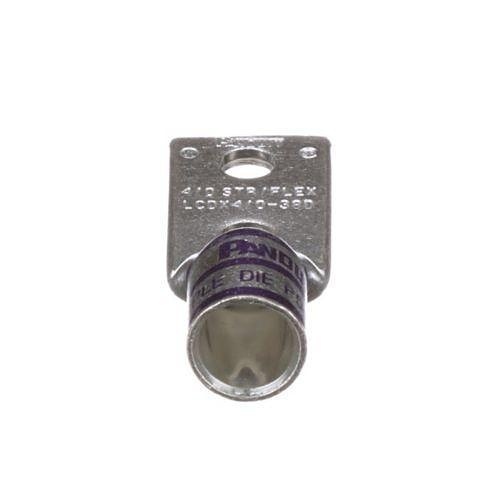

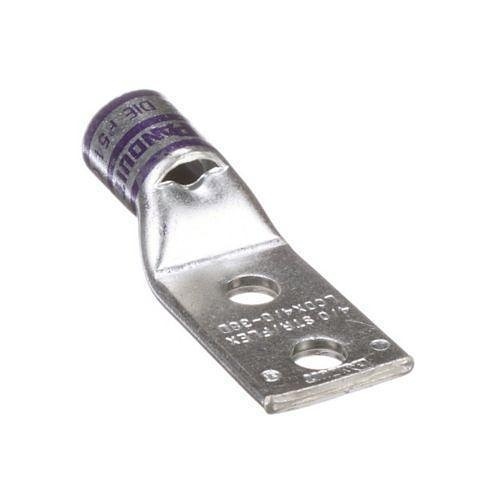

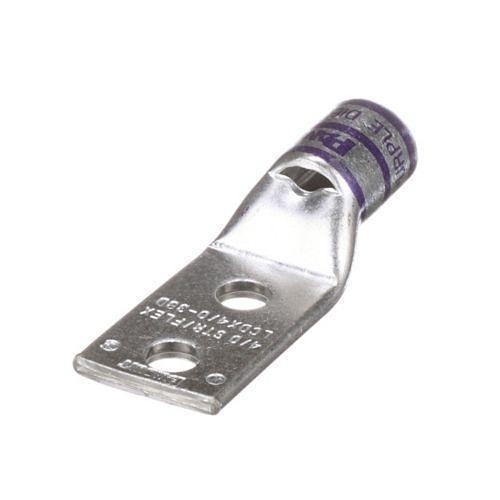

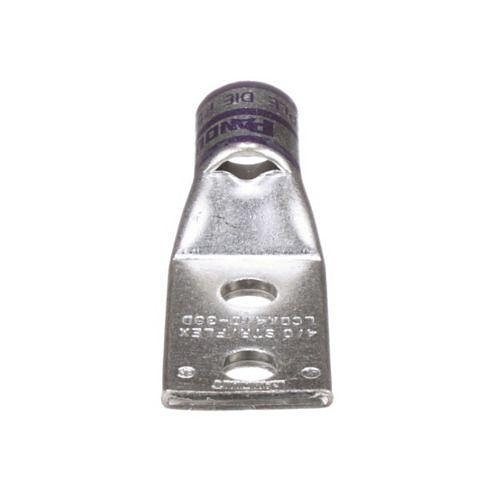

Panduit LCDX4/0-38D-X Compression Connector Lug, 2-Hole, Flex, 4/0AWG, Copper
LCDX4/0-38D-X | P9-CDX4038DX
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The LCDX4/0-38D-X Tin-Plated Copper Compression Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Main Features
- Tin-plated copper compression lug
- Two-hole design
- Standard barrel with color-coded barrels
- Marked with Panduit and competitor die index numbers
- Inspection window for visual verification of conductor insertion
- UL Listed and CSA Certified to 35 KV
- Temperature rated to 90°C
General Information
Name: Panduit LCDX4/0-38D-X Compression Connector Lug, 2-Hole, Flex, 4/0AWG, Copper
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 074983423880
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-CDX4038DX Brand Name Panduit Manufacturer Part Number LCDX4/0-38D-X
Length 3.34"
