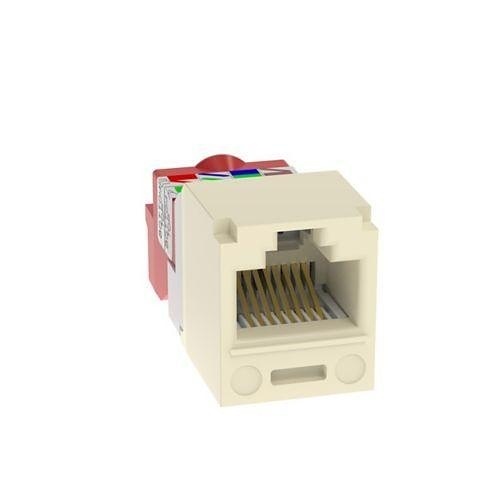

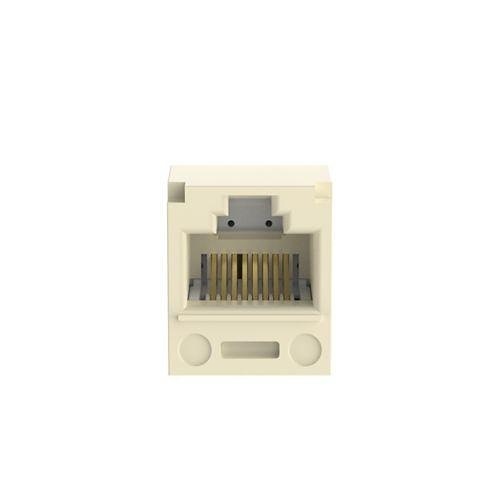

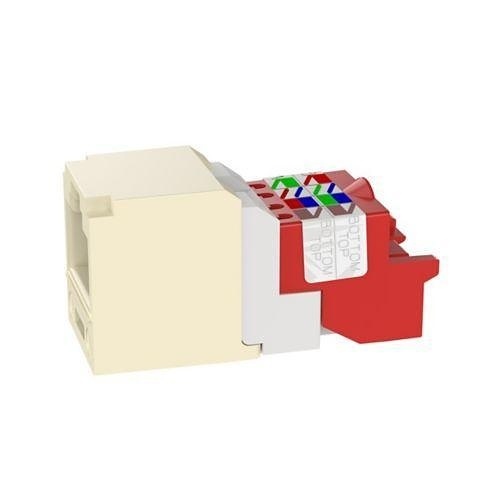

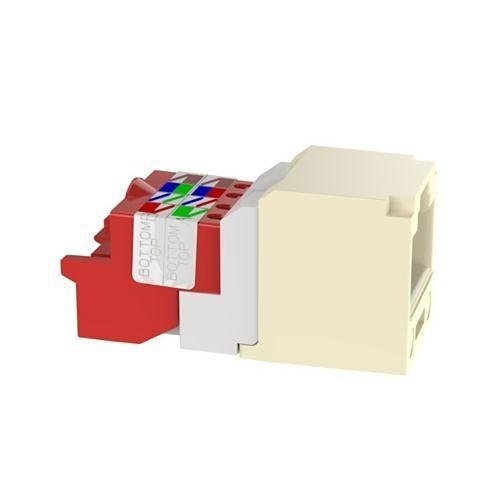

Panduit CJ5E88TEI Mini-Com Module Cat 5e UTP Keystone Jack, 8 Pos 8 Wire
CJ5E88TEI
|P9-CJ5E88TEI
Shop All Panduit
Panduit CJ5E88TEI Mini-Com Module Cat 5e UTP Keystone Jack, 8 Pos 8 Wire
CJ5E88TEI | P9-CJ5E88TEI
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Mini-Com Cat 5e UTP RJ45 TP-Style Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Electric Ivory.
Specifications
ADI Part Number P9-CJ5E88TEI Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number CJ5E88TEI Package Length 0 Packaged Quantity 1 Product Line Mini-Com Product Name Mini-Com TX-5e Modular Connector Product Type Network Connector
Contact Plating Gold
Connector Type RJ45 Number of Contacts 10
Color Ivory Depth 1.4" Height 0.7" Width 0.6"
Length 1.43"
Environmentally Friendly Yes
