Panduit CTAP4-6-L Copper Compression Connector, #6 Compression Connectors, American Wire Gauge Standard
CTAP4-6-L|P9-CTAP46L
Panduit CTAP4-6-L Copper Compression Connector, #6 Compression Connectors, American Wire Gauge Standard
CTAP4-6-L|P9-CTAP46L
Key Features
- For tapping into unbroken continuous main, as a wire joint or two-way splice
- Wide wire range-taking capability minimizes inventory requirements
- Made from heavy wall, extruded, high conductivity copper; provides high strength and premium electrical properties
Key Features
- For tapping into unbroken continuous main, as a wire joint or two-way splice
- Wide wire range-taking capability minimizes inventory requirements
- Made from heavy wall, extruded, high conductivity copper; provides high strength and premium electrical properties
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- For tapping into unbroken continuous main, as a wire joint or two-way splice
- Wide wire range-taking capability minimizes inventory requirements
- Made from heavy wall, extruded, high conductivity copper; provides high strength and premium electrical properties
Panduit
Panduit CTAP4-6-L Copper Compression Connector, #6 Compression Connectors, American Wire Gauge Standard
CTAP4-6-L | P9-CTAP46L
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

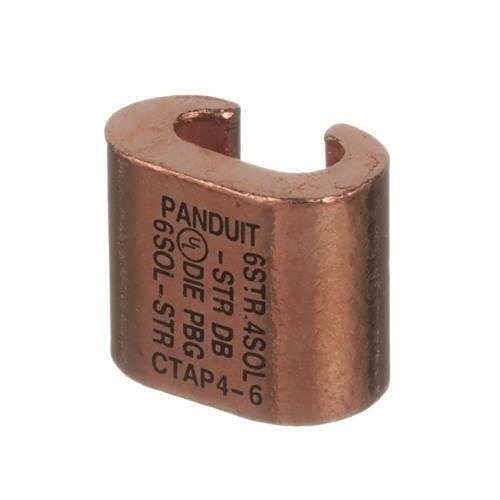

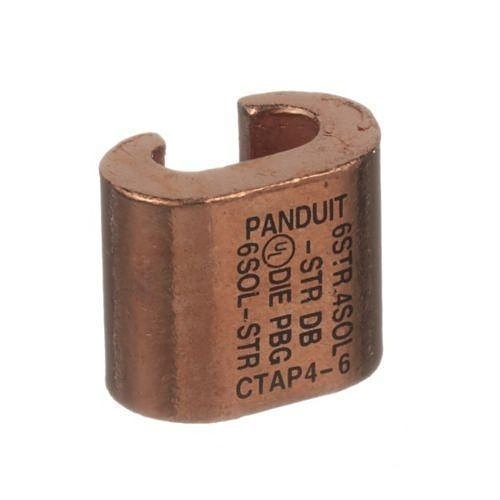

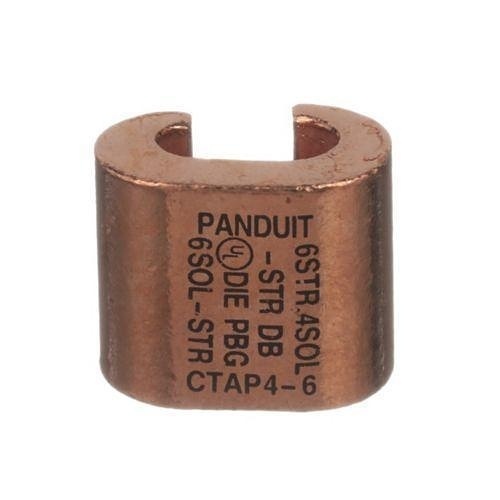

The Panduit CTAP4-6-L Copper Compression Tap is designed for tapping into unbroken continuous mains, serving as a wire joint or two-way splice. It supports a wide range of wire sizes, reducing the need for extensive inventory. Crafted from heavy wall, extruded copper, it ensures high strength and excellent electrical conductivity. This UL Listed product is rated for use up to 35 KV and 90°C when crimped with approved tools. Additionally, it's suitable for grounding and bonding, including direct burial in earth or concrete. Enhance your electrical installations with this reliable solution today!
Main Features
- For tapping into unbroken continuous main, as a wire joint or two-way splice
- Wide wire range-taking capability minimizes inventory requirements
- Made from heavy wall, extruded, high conductivity copper; provides high strength and premium electrical properties
- UL Listed per UL 486 for use up to 35 KV and temperature rated 90°C when crimped with Panduit and specified competitor crimping tools and dies
- UL Listed per UL 467 for grounding and bonding suitable for direct burial in earth or concrete when crimped with Panduit and specified competitor crimping tools and dies
General Information
Name: Panduit CTAP4-6-L Copper Compression Connector, #6 Compression Connectors, American Wire Gauge Standard
Category: Panduit, Batteries & Power Supplies, Power Management, Grounding & Bonding
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P9-CTAP46L Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number CTAP4-6-L Product Line StructuredGround Product Name StructuredGround Compression Connectors - Taps (50 pcs) Product Type Grounding Connector
-
Height 0.8" Material Copper Width 0.6"
-
Length 0.5"
-
Limited Warranty 1-Year
-
Compatibility - For Use With: AWG wire only
- Application: Utility/Ground Grid
