Panduit DNF18-187-C Female Disconnect Nylon Barrel Insulated Connectors
DNF18-187-C
|P9-DNF18187C
Shop All Panduit
Panduit DNF18-187-C Female Disconnect Nylon Barrel Insulated Connectors
DNF18-187-C | P9-DNF18187C
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

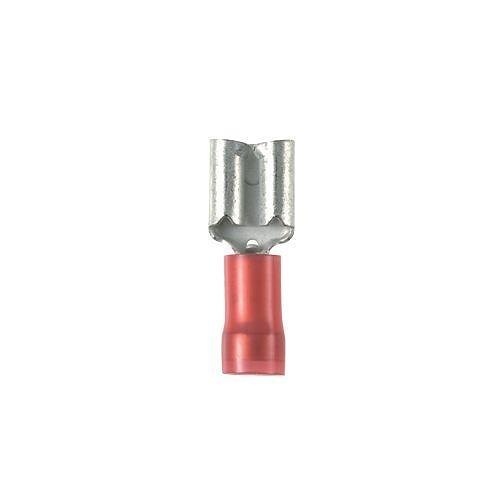

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.
Main Features
- Features terminal connector
- Contacts are plated with Tin
General Information
Name: Panduit DNF18-187-C Female Disconnect Nylon Barrel Insulated Connectors
Category: Panduit, Data Comm & Networking, Cable Connectors, Splice Connectors
UPC Code: 74983827084
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-DNF18187C Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number DNF18-187-C Packaged Quantity 100 Product Name Terminal Connector Product Type Terminal Connector
American Wire Gauge 18AWG Contact Plating Tin
Color Red Height 0.10" Width 0.20"
Length 0.76"
Limited Warranty 1-Year
Environmentally Friendly Yes Features Flame Retardant
