Panduit PSF1PZC5MWH SFP+ 10GIG Direct Attach Passive Copper Cable
PSF1PZC5MWH
|P9-F1PZC5MWH
Shop All Panduit
Panduit PSF1PZC5MWH SFP+ 10GIG Direct Attach Passive Copper Cable
PSF1PZC5MWH | P9-F1PZC5MWH
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

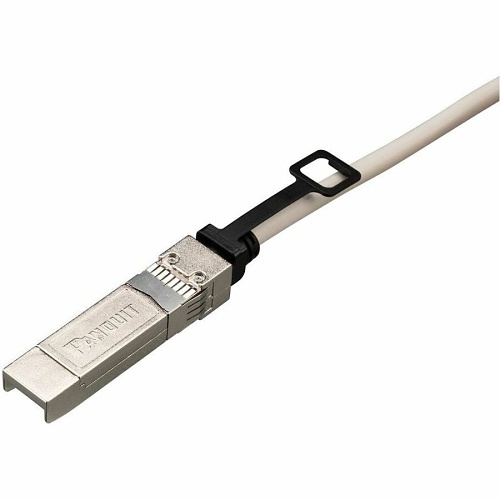

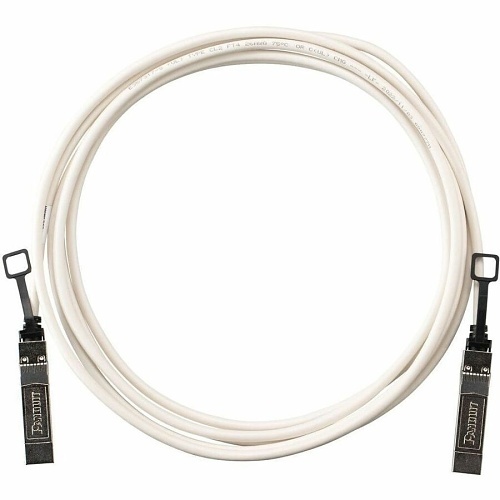

This direct attach passive copper cable assembly features 10G factory-terminated SFP+ passive modular connectors on each end. The high-speed, 2-pair assembly has twinaxial cable, is white in cable color, 26AWG and 5 meters in length.
Main Features
- 100% performance tested:
- Confidence that each assembly delivers specified performance for ensured network availability
- Compliant to SFF-8431, SFF-8432 and SFF-8472:
- Ensuring 10 Gb/s performance when mated to any SFF-8431 SFP+ compliant host port
- Robust construction:
- High speed 10 GHz twin-axial cable, with two shielded parallel pairs, factory terminated to SFP+ 10 Gb/s hot pluggable modular connectors; rated to a minimum 250 mating cycles
- Low latency performance:
- Ideal for high performance computer clustering and other latency sensitive applications
- Passive low power assembly:
- Provides a low cost short reach interconnect option with no additional power draw
General Information
Name: Panduit PSF1PZC5MWH SFP+ 10GIG Direct Attach Passive Copper Cable
Category: Panduit, Data Comm & Networking, Network Adapters, SFP Modules
UPC Code: 613056785557
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-F1PZC5MWH Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number PSF1PZC5MWH Packaged Quantity 1 Product Name 10G SFP+ DAC Assembly, 26AWG, 5M, White Product Type Network Cable
American Wire Gauge 26AWG Cable Type Twinaxial Device Supported Computer, Network Device, Rack Server, Switch Shielding Yes
Data Transfer Rate 10 Gbit/s
Cable Length 16.40' Color White
Limited Warranty 1-Year
Environmental Certification RoHS Environmentally Friendly Yes Features Hot Pluggable, Latching Connector, Passive, Pull Tab Latch, Strain Relief
