Panduit PSF2PZC4MBL SFP28 25GIG 26 AWG DAC Assembly, 4m, Black
PSF2PZC4MBL
|P9-F2PZC4MBL
Shop all Panduit
Panduit PSF2PZC4MBL SFP28 25GIG 26 AWG DAC Assembly, 4m, Black
PSF2PZC4MBL | P9-F2PZC4MBL
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

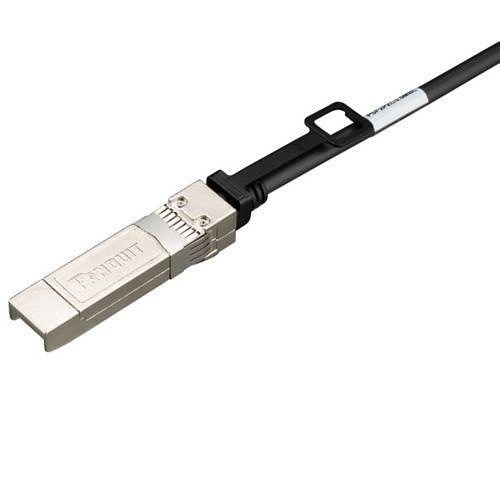

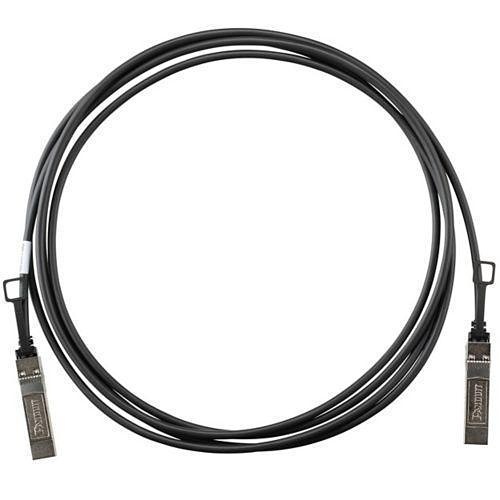

SFP28 25 Gb/s Direct Attach Active Cable Assemblies
- Ideal for Top of Rack (ToR) and End of Row (EoR) switch to server applications
- Fibre Channel over Ethernet (FCoE) capable
- Connector contains low power circuitry to extend beyond passive cable assemblies
- Constructed with high-speed, 2-pair, twinaxial cable, factory terminated to SFP28 25Gbps hot pluggable modular connectors
- 100% performance tested
- Low profile latching mechanism in connector allows assemblies to be installed side by side or stacked on top of each other providing maximum port density in highdensity installations
- Small diameter cable design enables superior cable management and improved air flow
- Robust strain relief boot provides proper bend radius control for consistent reliability
- Variety of standard lengths allow more precise deployment, improved cable management, and cost efficiencies
Main Features
- Experience a simpler way to connect devices with the entire business network
- Twinaxial cable type - for places where up to 10 meters coverage with high-speed data transfer is required
- Active feature for better reliability and ensure maximum productivity
- Network Device device supported according to your requirements with maximum productivity
General Information
Name: Panduit PSF2PZC4MBL SFP28 25GIG 26 AWG DAC Assembly, 4m, Black
Category: Panduit, Data Comm & Networking, Network Adapters, SFP Modules
UPC Code: 613056776968
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-F2PZC4MBL Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number PSF2PZC4MBL Packaged Quantity 1 Product Name Twinaxial Network Cable Product Type Network Cable
American Wire Gauge 26AWG Cable Type Twinaxial Device Supported Network Device, Server, Switch Shielding Yes
Data Transfer Rate 25 Gbit/s
Cable Length 13.12' Color Black
Country of Origin US Features Active, Bendable, Booted, Latching Connector, Strain Relief
