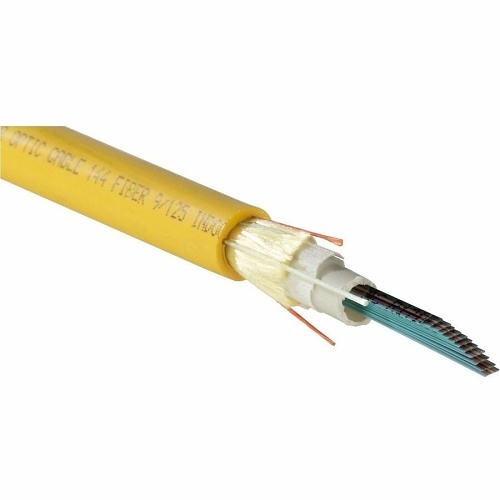

Panduit FFDPBF096F OS2 96 Fiber Indoor Distribution Fiber Optic Cable
FFDPBF096F
|P9-FDPBF096F
Shop All Panduit
Panduit FFDPBF096F OS2 96 Fiber Indoor Distribution Fiber Optic Cable
FFDPBF096F | P9-FDPBF096F
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Fibers shall be ribbonized for easy mass fusion splicing and termination with twelve fiber MPO style connectors. Cable shall contain 12, 24, 48, 72, or 96 singlemode and OM4 multimode fibers and be plenum flame rated for indoor spaces. Construction shall be robust, compact and all-dielectric.
Main Features
- Ribbonized fibers: Allow the installer to splice or terminate twelve fibers at a time; reduced installation time; compatible withMPO connectors and pigtails
- Compact design: Has smaller diameter and bend radius than non-ribbonized loose tube cables; easier to install
- Aramid yarn and dielectric strength rods: Offers excellent strength, durability, and compression resistance
- OFNP flame rating: Provides life safety benefits and meets industry standards across the globe
- G.657.A2/B2 singlemode fibers: Deliver high bit rate data transmission and are bend insensitive
General Information
Name: Panduit FFDPBF096F OS2 96 Fiber Indoor Distribution Fiber Optic Cable
Category: Panduit, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Cables
UPC Code: 613056816176
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-FDPBF096F Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number FFDPBF096F Packaged Quantity 1 Product Line Opti-Core Product Name OS2 (G.657.A2) 96-Fiber Indoor Distribution Cable, OFNP, Ribbon Product Type Network Cable
Cable Rating Plenum Cable Type Ribbon Device Supported Network Device Fiber Category OM4, OS2 Fiber Optic Mode Multimode, Single-mode Jacket Type OFNP, Plenum
Color Yellow Package Type Bulk
Limited Warranty 1-Year
Environmental Certification RoHS Environmentally Friendly Yes Features Bend Insensitive, Bendable Indoor/Outdoor Indoor
