Panduit FR12TB12 FiberRunner Trapeze Bracket, 1/2" Threaded Rod, 12" x 4"

FR12TB12 | P9-FR12TB12

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

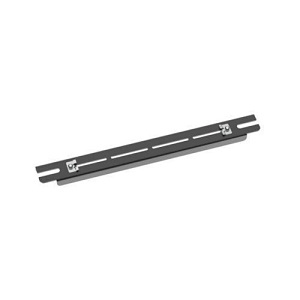

The FiberRunner® QuikLock™ Trapeze Bracket is used to support the 12x4 system by spanning two threaded rod drops that are 18 inches apart. It can be installed from above or below. It is used for a 0.5 inch threaded rod. The QuikLock™ Trapeze Bracket is secured to each threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to the channel.

Main Features

Allows the rod to flex and rotate, but stay firm in the position where it is attached to the frame
Built with steel product material to offer usage dependabilty and durability, ensuring prolonged use
Cable Management feature for better reliance and usability
Rod application/usage for maximum productivity with convenience and optimal results

General Information

Name: Panduit FR12TB12 FiberRunner Trapeze Bracket, 1/2" Threaded Rod, 12" x 4"

Category: Panduit, Data Comm & Networking, Cable Management, Cable Trays, Ladders & Fittings

UPC Code: 074983847464

Country of Origin: . Country of origin is subject to change.

Specifications

: ADI Part Number P9-FR12TB12 Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number FR12TB12 Package Length 0 Packaged Quantity 1 Product Line QuikLock Product Name FiberRunner Trapeze Bracket Product Type Mounting Bracket

: Application/Usage Rod Device Supported Cable Routing System Material Steel

: Color Black Height 0.9" Width 2.3"

: Length 21.5"

: Limited Warranty 1-Year

: Features Cable Management Package Contents

1 x Bracket Assembly

4 x 1/2 Helical Spring Lock Washers

4 x 1/2-13 Heavy Hex Nuts

1 x 1/4-20 T-Bolt

1 x 1/4-20 Hex KEPS Nut
