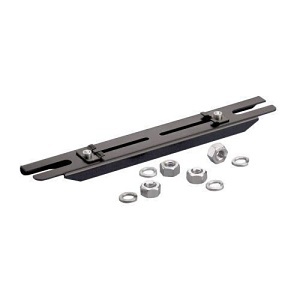

Panduit FR6TB12 FiberRunner QuickLock Trapeze Bracket for 1/2" Threaded Rod
FR6TB12
|P9-FR6TB12
Shop All Panduit
Panduit FR6TB12 FiberRunner QuickLock Trapeze Bracket for 1/2" Threaded Rod
FR6TB12 | P9-FR6TB12
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Used to support the 6x4 and 4x4 systems by spanning two threaded rod drops. Can be installed from above or below. Bracket is secured to each threaded rod with two nuts. The pre-assembled slide clamp enables fast assembly to channel. Use 7/16in nut driver on slide clamps, For 1/2in threaded rod.
Main Features
- Supports 6x4 and 4x4 systems by spanning two threaded rod drops
- Can be installed from above or below
- Bracket secured to each threaded rod with two nuts
- Pre-assembled slide clamp enables fast assembly to channel
- Use 7/16in nut driver on slide clamps
- Compatible with 1/2in threaded rod
General Information
Name: Panduit FR6TB12 FiberRunner QuickLock Trapeze Bracket for 1/2" Threaded Rod
Category: Panduit, Data Comm & Networking, Cable Management, Cable Trays, Ladders & Fittings
UPC Code: 074983852833
Country of Origin: .Country of origin is subject to change.
Specifications
ADI Part Number P9-FR6TB12 Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number FR6TB12 Product Line QuikLock Product Model FR6TB12 Product Name QuikLock FR6TB12 Trapeze 1/2" Bracket Product Type Mounting Bracket
Material Steel
Height 0.62" Width 1.94"
Compatibility Panduit FiberRunner 4x4 Routing System Country of Origin US
