Panduit JBX3510WH-A Surface Raceway, Low Voltage Junction Box, PVC, White
JBX3510WH-A|P9-JBX3510WH
Panduit JBX3510WH-A Surface Raceway, Low Voltage Junction Box, PVC, White
JBX3510WH-A|P9-JBX3510WH
Key Features
- Low voltage junction box for surface raceway
- Compatible with T45 or LD profile raceway
- Accepts Pan-Way Screw-On Faceplates
Key Features
- Low voltage junction box for surface raceway
- Compatible with T45 or LD profile raceway
- Accepts Pan-Way Screw-On Faceplates
.jpg)
Key Features
- Low voltage junction box for surface raceway
- Compatible with T45 or LD profile raceway
- Accepts Pan-Way Screw-On Faceplates
Panduit
Panduit JBX3510WH-A Surface Raceway, Low Voltage Junction Box, PVC, White
JBX3510WH-A | P9-JBX3510WH
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

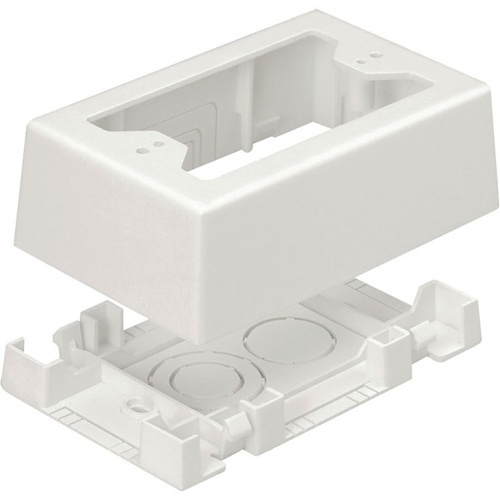

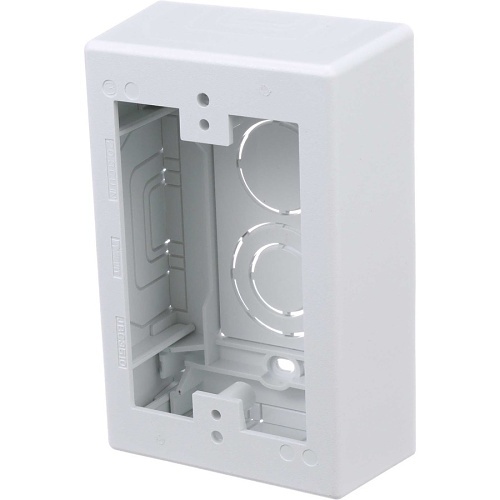

The low voltage junction box for surface raceway is a one gang snap together outlet box designed for low voltage applications. It is made to be used with the T45 or LD profile raceway. It accepts Pan-Way® Screw-On Faceplates or any NEMA standard single gang faceplate. It measures 5 inches L x 3.26 inches W x 1.62 inches H (127.1mm x 82.7mm x 41.1mm). It is made of PVC material and is white.
Main Features
- Low voltage junction box for surface raceway
- Compatible with T45 or LD profile raceway
- Accepts Pan-Way Screw-On Faceplates
- Supports NEMA standard single gang faceplate
- Dimensions: 5" L x 3.26" W x 1.62" H
- Made of durable PVC material
- Sleek white finish
General Information
Name: Panduit JBX3510WH-A Surface Raceway, Low Voltage Junction Box, PVC, White
Category: Panduit, Data Comm & Networking, Electrical Back Boxes & Brackets, Low Voltage Mounting Brackets
UPC Code: 074983353958
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P9-JBX3510WH Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number JBX3510WH-A Packaged Quantity 1 Product Line Pan-Way Product Name Surface Raceway Low Voltage Junction Box, White Product Type Cable Organizer
-
Color White Height 1.62" Material PVC Width 3.26"
-
Length 5"
-
Compatibility T45 or LD profile raceway Environmentally Friendly Yes
