Panduit LCA2-14-Q Compression Connector Lug, 1-Hole, 2AWG, Copper
LCA2-14-Q | P9-LCA214Q
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

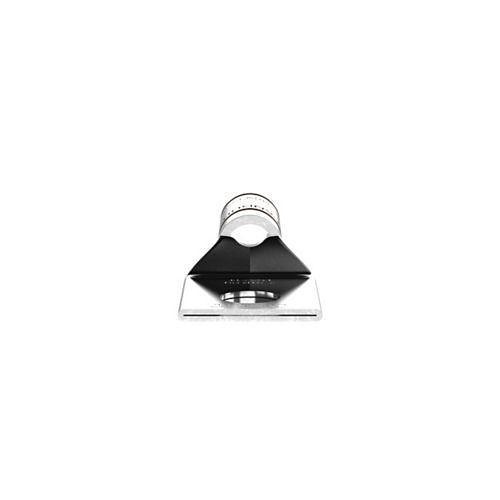

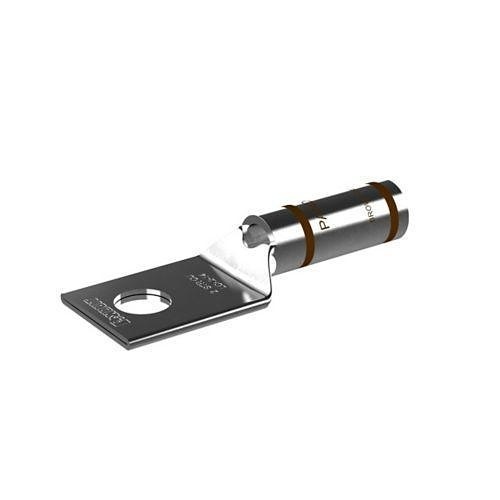

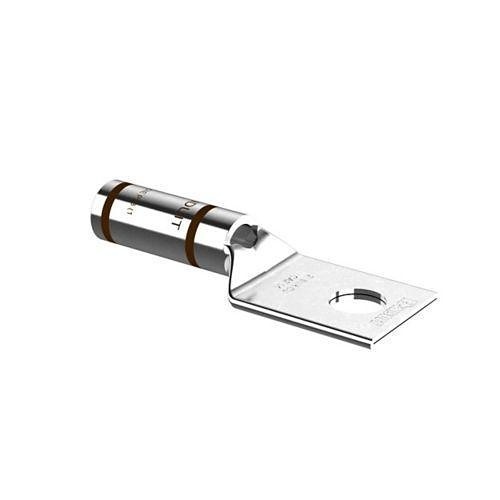

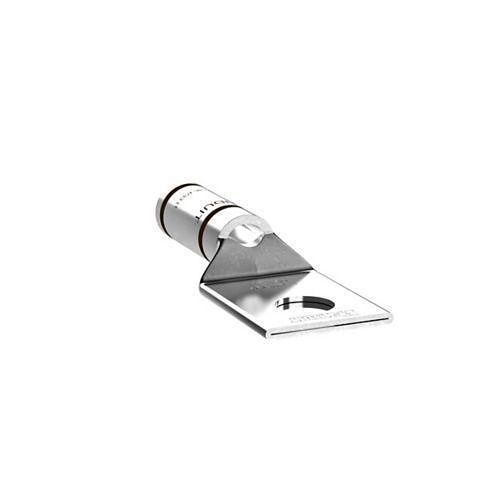

One-hole, standard barrel with window lug, #2 AWG wire, 1/4" stud hole.
Main Features
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV** and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with Panduit® Uni-Die™ Dieless Crimping Tools?
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
General Information
Name: Panduit LCA2-14-Q Compression Connector Lug, 1-Hole, 2AWG, Copper
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 074983900152
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-LCA214Q Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number LCA2-14-Q Product Name Terminal Connector Product Type Terminal Connector
Color Brown Width 0.6"
Length 1.8"
Environmentally Friendly Yes Features Corrosion Resistant
