Panduit LCCX4-12-L Compression Connector Lug, 2-Hole, Flex, #4AWG, Copper
LCCX4-12-L
|P9-LCCX412L
Shop All Panduit
Panduit LCCX4-12-L Compression Connector Lug, 2-Hole, Flex, #4AWG, Copper
LCCX4-12-L | P9-LCCX412L
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

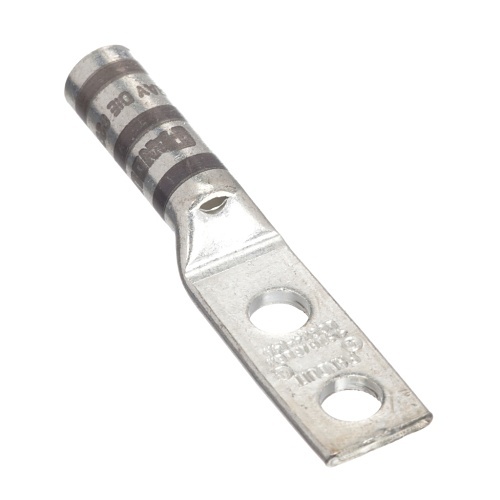

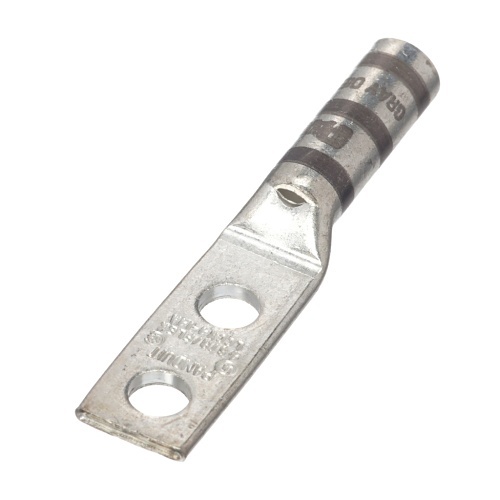

The LCCX4-12-L Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Main Features
- Tin-plated copper construction
- Two-hole long barrel design
- Color-coded barrels with Panduit and competitor die index markings
- Maximized number of crimps for enhanced wire pull-out strength
- Beveled wire entry to prevent strand bending
- UL Listed and CSA Certified
General Information
Name: Panduit LCCX4-12-L Compression Connector Lug, 2-Hole, Flex, #4AWG, Copper
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 613056853232
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-LCCX412L Brand Name Panduit Manufacturer Part Number LCCX4-12-L
Length 4.25"
