Panduit LCCN1000-12W-3 Copper Compression Lug, 1000 KCMil, 2-Hole
LCCN1000-12W-3
|P9-N100012W3
Shop All Panduit
Panduit LCCN1000-12W-3 Copper Compression Lug, 1000 KCMil, 2-Hole
LCCN1000-12W-3 | P9-N100012W3
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

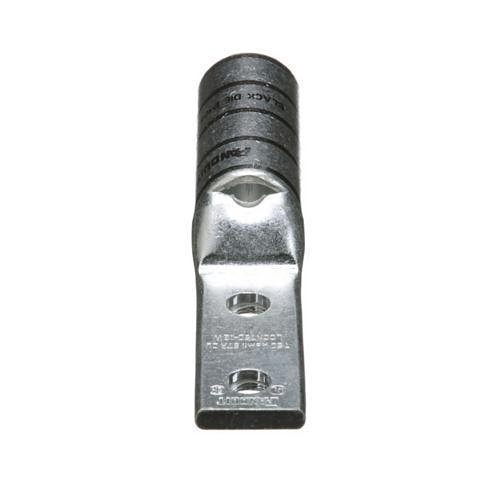

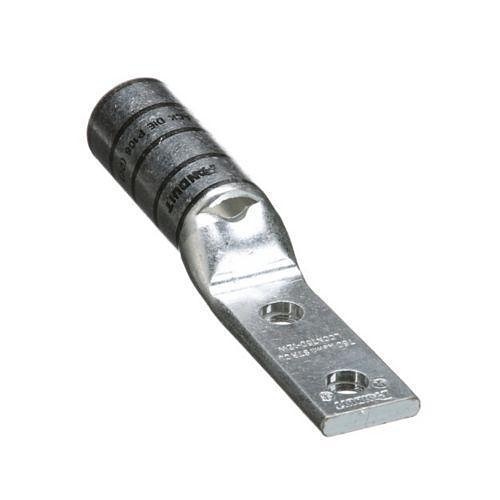

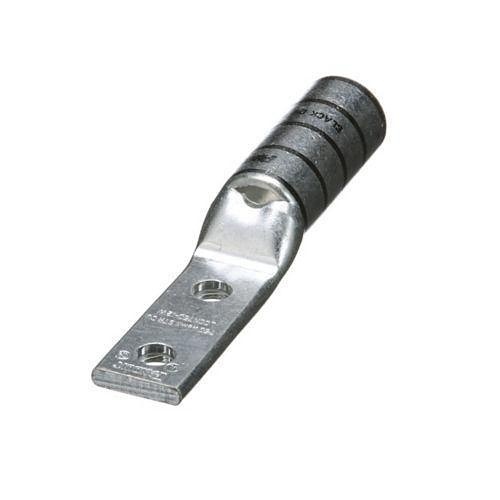

The LCCN1000-12W-3 Tin Plated Copper Compression Lug, 2-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. An inspection window aids to visually ensuring full conductor insertion. UL Listed and CSA Certified to 35 kV and temperature rated to 90°C.
Main Features
- Tin plated copper compression lug
- 1000 KCMil capacity
- 2-hole design
- Long barrel for maximum crimps and wire pull-out strength
- Color-coded barrels with Panduit and competitor die index numbers
- Inspection window for full conductor insertion verification
- UL Listed and CSA Certified to 35 kV
- Temperature rated to 90°C
General Information
Name: Panduit LCCN1000-12W-3 Copper Compression Lug, 1000 KCMil, 2-Hole
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 613056853225
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-N100012W3 Brand Name Panduit Manufacturer Part Number LCCN1000-12W-3
Length 6.9"
