Panduit LCCN300-38DW-X Compression Connector Lug, 2-Hole, Narrow, 300kcmil, Copper
LCCN300-38DW-X
|P9-N30038DWX
Shop all Panduit
Panduit LCCN300-38DW-X Compression Connector Lug, 2-Hole, Narrow, 300kcmil, Copper
LCCN300-38DW-X | P9-N30038DWX
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

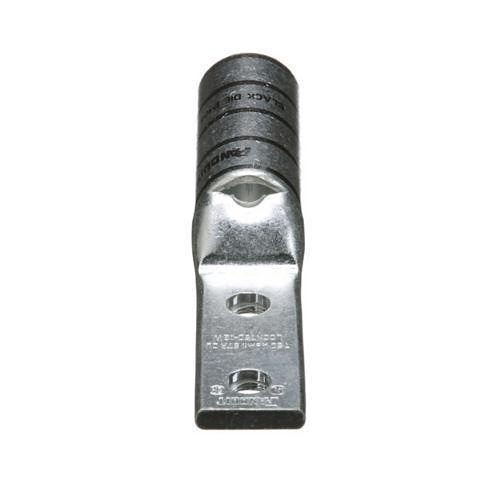

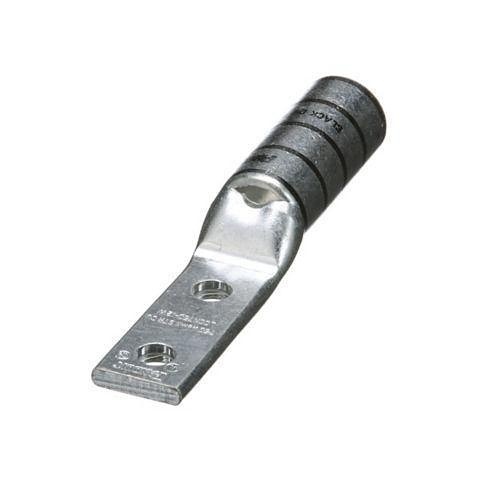

The LCCN300-38DW-X Tin Plated Copper Compression Lug, two-hole, long barrel, narrow tongue has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. An inspection window aids to visually assure full conductor insertion. UL Listed and CSA Certified to 35 kV and temperature rated to 90°C.
Main Features
- Tin plated copper construction
- Two-hole narrow tongue design
- Long barrel for maximum crimps and wire pull-out strength
- Color-coded barrels marked with Panduit and competitor die index numbers
- Inspection window for visual conductor insertion verification
- UL Listed and CSA Certified to 35 kV
- Temperature rated to 90°C
General Information
Name: Panduit LCCN300-38DW-X Compression Connector Lug, 2-Hole, Narrow, 300kcmil, Copper
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 613056853201
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-N30038DWX Brand Name Panduit Manufacturer Part Number LCCN300-38DW-X
Length 4.55"
