Overview
Specifications
Documents
Product Overview

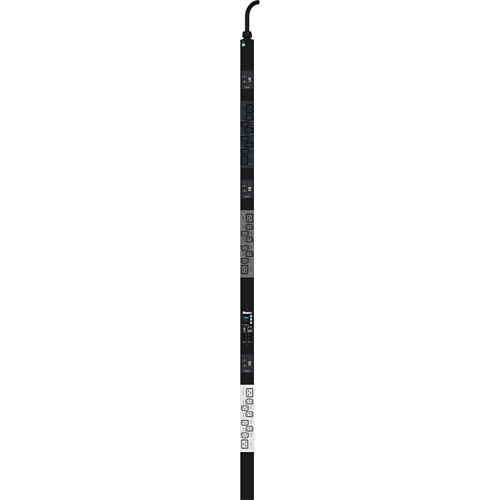

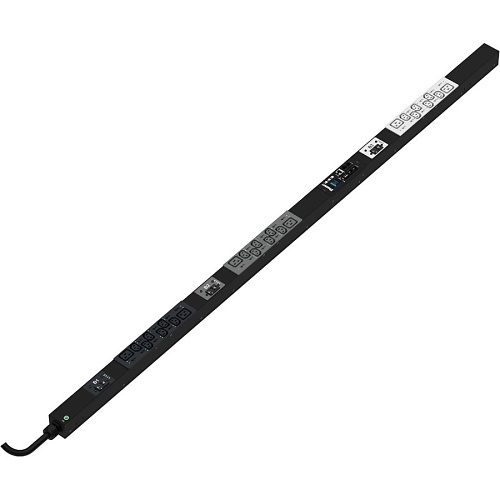

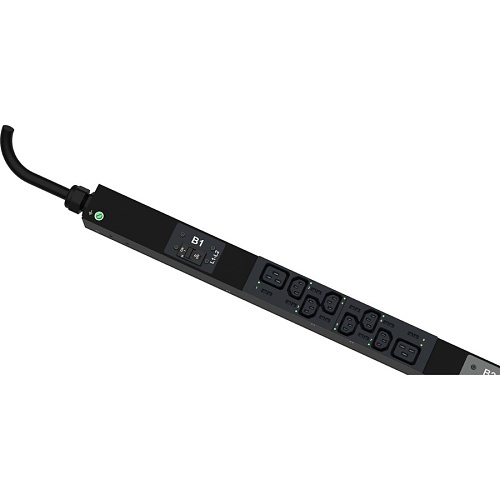

This Panduit G5 Monitored and Switched per Outlet PDU features (18) C13 and (6) C19 outlets. It is a 30A, 415V, three-phase PDU with an IEC 60309 3P+N+E 6h 30A (IP67) input plug and a 10' (3m) power cord.
Main Features
- PDU distributes AC power to multiple servers and balances the load on the servers
- with monitored PDU, you can remotely monitor single-or three-phase voltage easily to ensure maximum power supply efficiency
- IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
- Three Phase phase PDU for reliable performance with maximum productivity
- IEC 60309 3P+N+E 6h 30A (IP67) plug/connector type for better, dependable connectivity and desired power output
- 415 V input voltage for maximum feasibility and added productivity
- 208 V AC output voltage for better reliance and maximum usability
General Information
Name: Panduit P24G13M Power Distribution Unit, 30A, 415V
Category: Panduit, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 613056798571
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P9-P24G13M Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number P24G13M Packaged Quantity 1 Product Line SmartZone Product Name SmartZone G5 Intelligent 24-Outlets PDU Product Series MSPO Product Type PDU
-
Output Voltage 208V AC PDU Type Monitored Phase Three Phase Receptacle Detail 18 x IEC 60320 C13, 6 x IEC 60320 C19 Receptacle Type IEC 60320 C13, IEC 60320 C19
-
Network (RJ-45) Yes
-
Depth 2.1" Height 68.9" Mounting Orientation Vertical Width 2"
-
Input Voltage 415V Plug/Connector Type IEC 60309 3P+N+E 6h 30A (IP67)
-
Mount Type Rack Mount
-
Limited Warranty 3-Year
-
Environmentally Friendly Yes
