Panduit P36B02M Basic Power Distribution Unit, 30A, 415V, 24 C13 Outlets, 12 C1 Outlets

P36B02M

P9-P36B02M

Compare

Sign In for Dealer Pricing

New to ADI?Become a Customer

Data Sheet

Shop All Panduit

Panduit P36B02M Basic Power Distribution Unit, 30A, 415V, 24 C13 Outlets, 12 C1 Outlets

P36B02M | P9-P36B02M

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

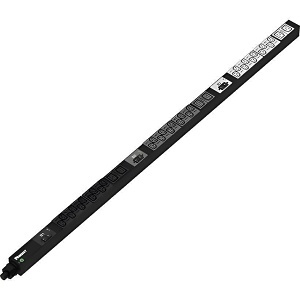

This Panduit G5 Basic PDU features (24) C13 and (12) C19 outlets. It is a 30A, 415 V, three phase PDU with a NEMA L22-30P input plug and a 10' (3m) power cord. The PDU is black.

Main Features

Meets demands of densely packed IT equipment in rack or cabinet space
Optimal form factor takes up less space for efficient rack space utilization
60°C Ambient at full load for operational reliability
Our innovative cable tie accepting outlets allow for secure cord retention (C13 and C19 only) using a cable tie for added safety and security
Protects data center equipment for increased reliability by interrupting potentially hazardous circuit over-current conditions
Easily identify phase to outlet banks to aid in fault isolation or load balancing
A full breadth offering to seamlessly interoperate with existing building power wiring schemes
Enables simple out-of-the-box commissioning and flexibility with Panduit cabinets and industry-standard mounting features enabling installation into third-party cabinets
Allows tool-less mounting of rack PDUs for faster installations on vertical 0U units
Meets NEC requirements and installation guidelines for IT equipment

General Information

Name: Panduit P36B02M Basic Power Distribution Unit, 30A, 415V, 24 C13 Outlets, 12 C1 Outlets

Category: Panduit, Batteries & Power Supplies, Power Management, Power Distribution Units

UPC Code: 613056798656

Country of Origin: . Country of origin is subject to change.

Specifications

: ADI Part Number P9-P36B02M Brand Name Panduit Manufacturer Part Number P36B02M Packaged Quantity 1 Product Line SmartZone Product Name Basic PDU, 30A, 415V, (24)C13, (12)C19, NEMA L22-30P Product Series G5 Product Type PDU

: Output Voltage 240V PDU Type Basic PDU Phase Three Phase Receptacle Type C13, C19

: Color Black Depth 2.1" Height 69" Mounting Orientation Vertical Rack Height 40U Width 2"

: Input Current 30A Input Voltage 415V Plug/Connector Type NEMA L22-30P

: Limited Warranty 3-Year

: Environmental Certification FCC, UL Environmentally Friendly Yes

Documents and Resources

Download All Documents

Product Data Sheet

Installation Instructions

Manufacturer Brochure
