Panduit P36B03M Basic Power Distribution Unit, 30A, 415V, 24 C13 Outlets, 12 C1 Outlets
P36B03M|P9-P36B03M
Panduit P36B03M Basic Power Distribution Unit, 30A, 415V, 24 C13 Outlets, 12 C1 Outlets
P36B03M|P9-P36B03M
Key Features
- PDU is reliable for power protection and management solutions
- Basic PDU is the space-saving and cost-effective way to deliver power
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
Key Features
- PDU is reliable for power protection and management solutions
- Basic PDU is the space-saving and cost-effective way to deliver power
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- PDU is reliable for power protection and management solutions
- Basic PDU is the space-saving and cost-effective way to deliver power
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
Panduit
Panduit P36B03M Basic Power Distribution Unit, 30A, 415V, 24 C13 Outlets, 12 C1 Outlets
P36B03M | P9-P36B03M
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

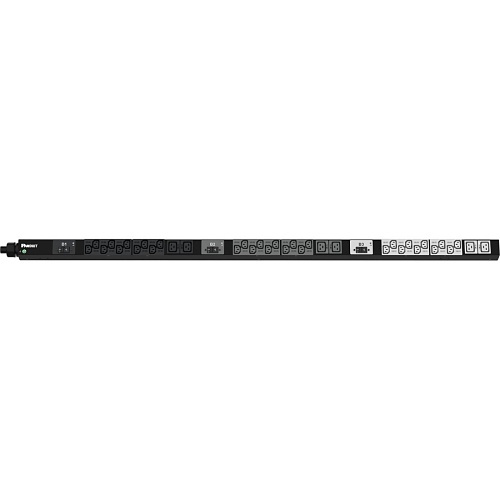

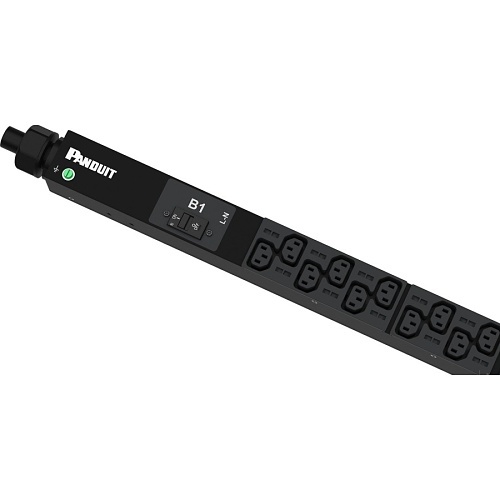

The SmartZone™ G5 Basic PDU features (24) C13 and (12) C19 outlets. It is a 30 amp, 415 V, three phase PDU with an IEC 60309 3P+N+E 6h 30A (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.
Main Features
- PDU is reliable for power protection and management solutions
- Basic PDU is the space-saving and cost-effective way to deliver power
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- Three Phase phase PDU provides optimal power output with added usability
- IEC 60309 3P+N+E 6h 30A (IP44) plug/connector type for efficient connectivity and feasible power output
- 415 V AC input voltage for optimal performance with maximum usability
- 240 V AC output voltage for optimal performance with maximum feasibility
General Information
Name: Panduit P36B03M Basic Power Distribution Unit, 30A, 415V, 24 C13 Outlets, 12 C1 Outlets
Category: Panduit, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P9-P36B03M Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number P36B03M Packaged Quantity 1 Product Line SmartZone Product Name SmartZone G5 36-Outlets PDU Product Series G5 Product Type PDU
-
Output Voltage 240V AC PDU Type Basic Phase Three Phase Receptacle Detail 12 x IEC 60320 C19, 24 x IEC 60320 C13 Receptacle Type IEC 60320 C13, IEC 60320 C19
-
Network (RJ-45) Yes
-
Color Black Depth 2.1" Height 68.9" Mounting Orientation Vertical Width 2"
-
Input Voltage 415V AC Plug/Connector Type IEC 60309 3P+N+E 6h 30A (IP44)
-
Mount Type Rack Mount
-
Limited Warranty 3-Year
