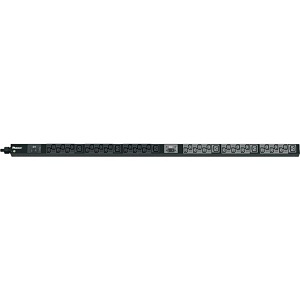

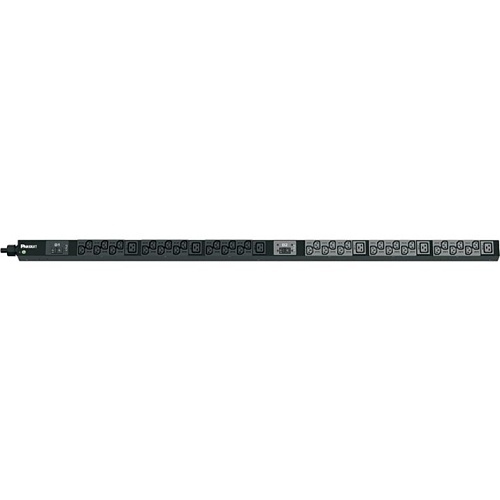

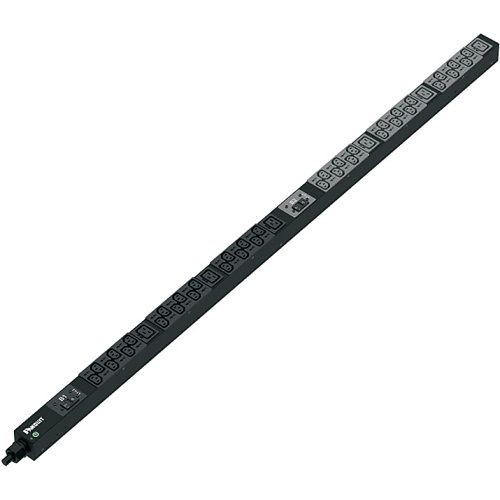

Panduit P42B17M Basic Power Distribution Unit, 30A, 36-C13, 6-C, 36-C13, 6-C19, NEMA L6
P42B17M
|P9-P42B17M
Shop All Panduit
Panduit P42B17M Basic Power Distribution Unit, 30A, 36-C13, 6-C, 36-C13, 6-C19, NEMA L6
P42B17M | P9-P42B17M
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
Main Features
- PDU allows power to be more efficiently distributed and controlled
- Basic PDU is the space-saving and cost-effective way to deliver power
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- Single Phase phase PDU provides dependable power output with maximum efficiency
- NEMA L6-30P plug/connector type for better, dependable connectivity and desired power output
- 230 V AC input voltage for maximum feasibility and added productivity
- 208 V AC output voltage for better reliance and maximum usability
General Information
Name: Panduit P42B17M Basic Power Distribution Unit, 30A, 36-C13, 6-C, 36-C13, 6-C19, NEMA L6
Category: Panduit, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 613056263789
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-P42B17M Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number P42B17M Packaged Quantity 1 Product Line SmartZone Product Model P42B17M Product Name P42B17M Vertical Basic Power Distribution Unit Product Type PDU Sector Data Comm & Networking
Output Voltage 208V AC PDU Type Basic Phase Single Phase Receptacle Detail 36 x IEC 60320 C13, 6 x IEC 60320 C19 Receptacle Type IEC 60320 C13, IEC 60320 C19
Remote Outlet Switching No
Depth 2.1" Height 58.7" Mounting Orientation Vertical Rack Height 0U Width 2"
Input Current 30A Input Voltage 230V AC Plug/Connector Type NEMA L6-30P
Mount Type Rack Mount Protection Type Double Pole
Limited Warranty 3-Year
Country of Origin US Environmentally Friendly Yes
