Panduit FP6X88MTG-X TX6A RJ45, CAT6a UTP Field Term Plug, 22-26 AWG, Black
FP6X88MTG-X | P9-P6X88MTGX
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

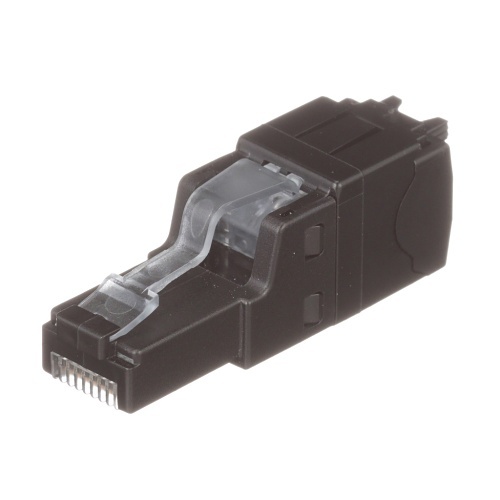

The TX6A™ Category 6A UTP Field Term Plug terminates 4-pair, 22-26 AWG, 100 ohm, UTP twisted pair cable and is backwards compatible with Cat 6 and 5e. The plug utilizes TG style technology to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. This plug simplifies installation of common devices such as cameras and wireless access points. The field term plug is black and includes 10 per package.
Main Features

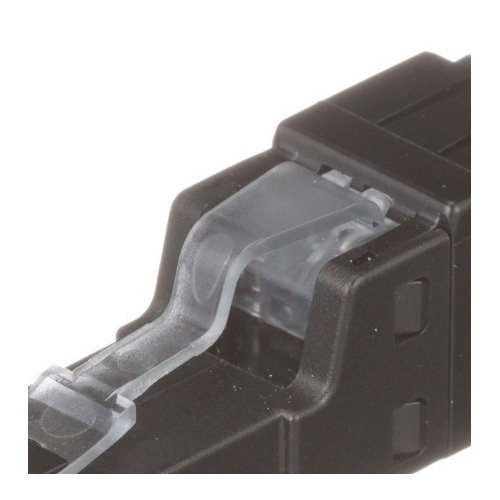

- Simple two-piece assembly:Field friendly, easier to handle during field installation, saving time and reducing termination error
- 45° up/down angled version:Angled version allows improved cable routing in tight spaces
- 22 - 26 AWG termination capable:Works with all co mmonly used solid and stranded UTP cabling
- TG-style termination technology:Proven electrical performance and quick installation speed from the same forward-motion termination technology used in Mini-Com® TG modular jacks
General Information
Name: Panduit FP6X88MTG-X TX6A RJ45, CAT6a UTP Field Term Plug, 22-26 AWG, Black
Category: Panduit, Data Comm & Networking, Cable Connectors, Network Cable Connectors
UPC Code: 613056308510
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-P6X88MTGX Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number FP6X88MTG-X Packaged Quantity 10 Product Name TX6A RJ45, Cat 6A UTP Field Term Plug, 22-26 AWG, Black Product Series TX6A Product Type Network Connector
Cable Type Category 6a Contact Plating Gold Impedance 100 ohms Material PC Shielding No
Connector Type RJ45
Color Black Height 0.6" Width 0.5"
Length 1.8"
Environmentally Friendly Yes Features 45° up/down angled version, PoE, PoE+, PoE++, Re-termination, TG-style termination technology
