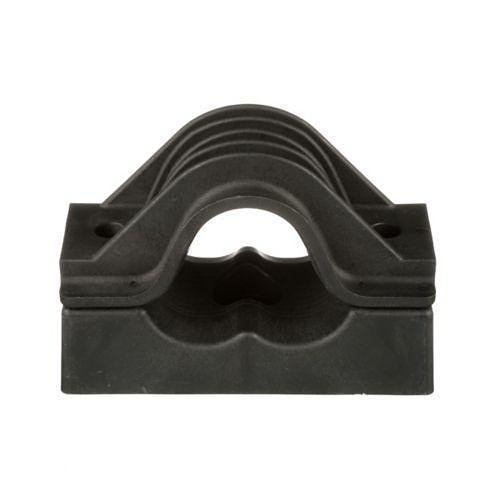

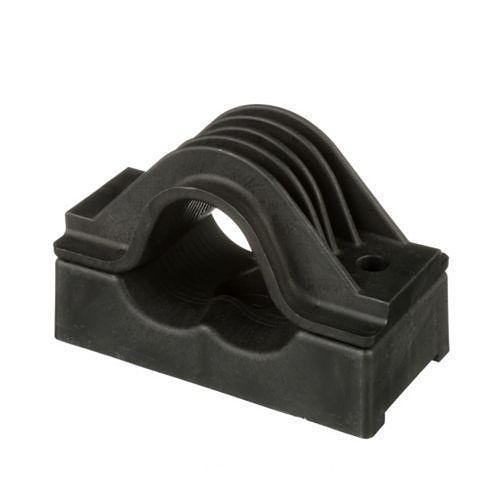

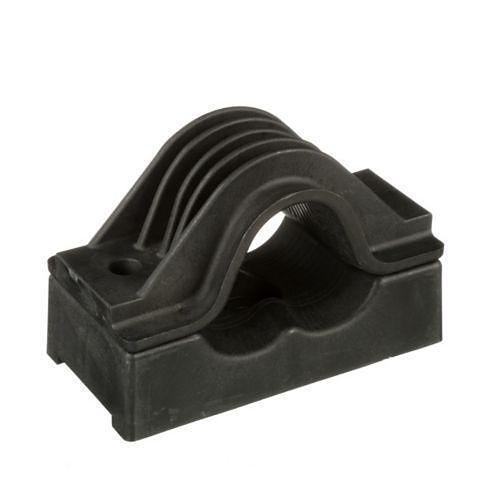

Panduit CCPLTR4352-X Cable Cleat, Polymer, Trefoil Configuration
CCPLTR4352-X
|P9-PLTR4352X
Shop All Panduit
Panduit CCPLTR4352-X Cable Cleat, Polymer, Trefoil Configuration
CCPLTR4352-X | P9-PLTR4352X
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The CCPLTR4352-X Polymer Trefoil Cable Cleat is ideal for medium to high short circuit faults in less harsh environments. The cable cleat is certified to IEC 61914;2015, tested up to 136 kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 43-52mm and installs directly to the cable tray rung via fixing holes and user-supplied M10 bolt. Features glass-filled nylon material and rounded edges for cable insulation protection.
Main Features
- Certified to IEC 61914;2015
- Tested up to 136 kA peak fault current
- Compatible with cable diameter of 43-52mm
- Installs directly to cable tray rung via fixing holes and user-supplied M10 bolt
- Made of glass-filled nylon material
- Rounded edges for cable insulation protection
- Suitable for medium to high short circuit faults in less harsh environments
- Trefoil cable cleat configuration
General Information
Name: Panduit CCPLTR4352-X Cable Cleat, Polymer, Trefoil Configuration
Category: Panduit, Data Comm & Networking, Cable Management, Cable Clamps
UPC Code: 613056690844
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-PLTR4352X Brand Name Panduit Manufacturer Part Number CCPLTR4352-X
Material Nylon
Color Black
Indoor/Outdoor Indoor, Outdoor
