Panduit FPS6X88MTG 22-26 AWG Cat6A Shielded Field Term Plug, RJ45

Brand: Panduit
ADI #:P9-PS6X88MTG Model #: FPS6X88MTG  Name: Panduit FPS6X88MTG 22-26 AWG Cat6A Shielded Field Term Plug, RJ45
Image of P9-PS6X88MTG

Product Overview

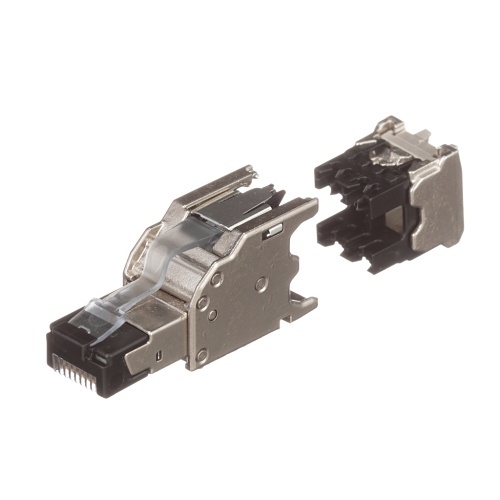

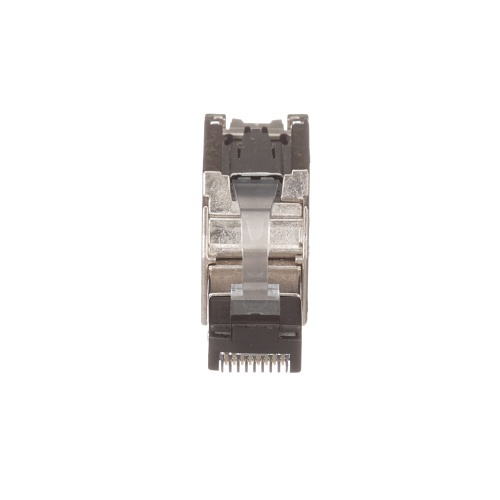

The TX6A™ Shielded Field Term RJ45 Plug is a simple-to-attach plug for field termination of 4-pair shielded twisted pair cable. Providing Category 6A performance the TX6A™ plug is also compatible with Category 6 and 5e shielded systems. The two-piece straight TX6A™ shielded plug terminates 4-pair, 22 - 26 AWG, 100 ohm shielded twisted pair cable and uses proven TG-style forward motion termination technology to optimize performance by maintaining cable pair geometry while eliminating conductor untwist.

General Information

Name : Panduit FPS6X88MTG 22-26 AWG Cat6A Shielded Field Term Plug, RJ45 , Panduit
Category : Keystone Jacks
UPC Code :

Specifications

General Information

ADI Part Number : P9-PS6X88MTG
Brand Name : Panduit
Manufacturer : PANDUIT CORP
Manufacturer Part Number : FPS6X88MTG
Packaged Quantity : 1
Product Name : Shielded Field Term Plug
Product Series : TX6A
Product Type : Network Connector

Technical Information

Connector Details : 1 x RJ-45 Network Male
Shielding : Yes

Interfaces/Ports

Connector Type : RJ-45 Network - Male

Physical Characteristics

Height : 0.7"
Height (mm) : 18.034
Width : 0.5"
Width (mm) : 13.6

Miscellaneous

Environmentally Friendly : Yes
Features : POE, Stranded
