Panduit PUR6004BU-W CAT6 23 AWG Copper Cable, UTP, CMR, Blue

Brand: Panduit
ADI #:P9-PUR6004BU Model #: PUR6004BU-W  Name: Panduit PUR6004BU-W CAT6 23 AWG Copper Cable, UTP, CMR, Blue
  • Third party tested Cable has been tested as part of the TX6000 Copper Cabling System by an independent laboratory and complies with the electrical channel requirements of the following standard: ANSI/TIA-568-C.2 Category 6
  • Guaranteed channel performance above the standards Industry leading guaranteed channel performance above the TIA/ISO standards with head room guaranteed
  • Integrated pair divider Separates pairs for exceptional cable performance

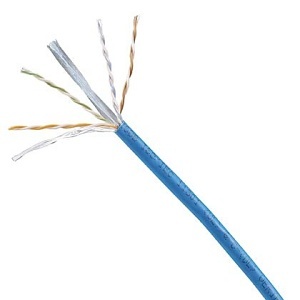

Image of P9-PUR6004BU

Product Overview

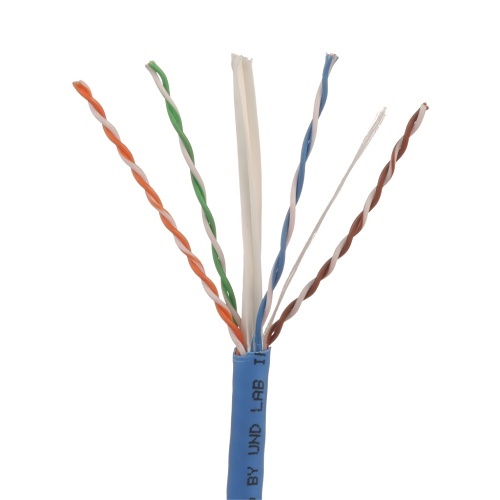

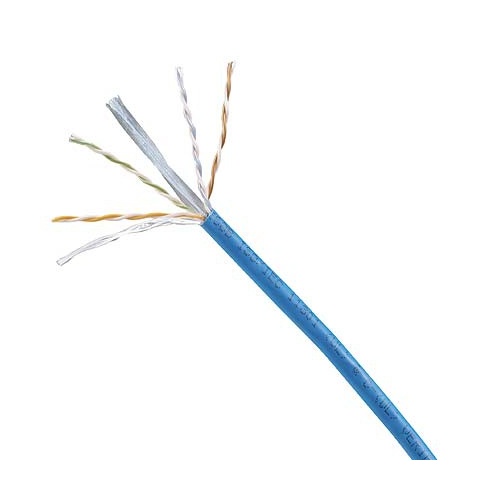

The TX6000™ Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.

General Information

Name : Panduit PUR6004BU-W CAT6 23 AWG Copper Cable, UTP, CMR, Blue , Panduit
Category : Category 6 Network Cables
UPC Code :

Specifications

General Information

ADI Part Number : P9-PUR6004BU
Brand Name : Panduit
Manufacturer : PANDUIT CORP
Manufacturer Part Number : PUR6004BU-W
Packaged Quantity : 1000
Product Line : TX6000
Product Name : TX6000 Enhanced Category 6 U/UTP Copper Cable
Product Type : Network Cable
Weight (Approximate) (g) : 11339.809

Technical Information

American Wire Gauge : 23AWG
Cable Type : Category 6
Device Supported : Network Device
Jacket Material : PVC
Shielding : No

Media & Performance

Data Transfer Rate : 1 Gbit/s
Data Transfer Rate (Bps) : 134217728

Physical Characteristics

Cable Length : 1000'
Cable Length (mm) : 304800
Weight (Approximate) : 25 lb

Warranty

Limited Warranty : 1 Year

Miscellaneous

Environmentally Friendly : Yes
Features : Flame Retardant, POE
