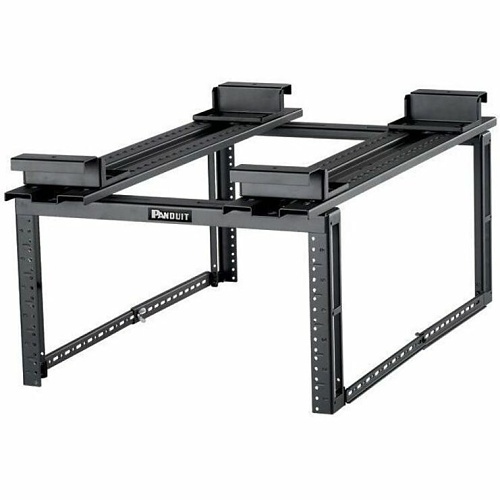

Panduit PZLRB4P6 Overhead Distribution Rack, 4-Post, 6RU, #12-24 Threaded E-Rails, Black
PZLRB4P6
|P9-PZLRB4P6
Shop All Panduit
Panduit PZLRB4P6 Overhead Distribution Rack, 4-Post, 6RU, #12-24 Threaded E-Rails, Black
PZLRB4P6 | P9-PZLRB4P6
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The PanZone® 4-Post Overhead Distribution Rack expands rack space above a rack or cabinet to maximize space in data centers and telecommunications rooms. The overhead rack can mount to most overhead racks or cable trays, or be suspended from the ceiling in numerous configurations. The 4-Post distribution rack enables the deployment of zone areas for greater scalability and quicker server deployments. The 4-Post overhead rack is 6RU, made of steel, and is black.
Main Features
- Mounts switch equipment above racks or cabinet: Allows maximum utilization of available rack or cabinet space in a top of rack switching configuration.
- Pathway compatible: Designed for use with Wyr-Grid Overhead Pathway and will work with basket tray or ladder rack
- Narrow width: Rack will fit over a 600 mm wide cabinet
- Adjustable depth: Adjust from 18" (457mm) to 30" (762mm) deep to accommodate various equipment depths
- Vertical managers with covers: Manage cabling, from overhead rack, down into rack or cabinet
- UL listed to 150 lbs: Heavy duty steel frame supports switch and patching above rack or cabinet
- Secure mounting: Mounts on strut supported with threaded rod to the ceiling
General Information
Name: Panduit PZLRB4P6 Overhead Distribution Rack, 4-Post, 6RU, #12-24 Threaded E-Rails, Black
Category: Panduit, Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code: 074983229710
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-PZLRB4P6 Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number PZLRB4P6 Product Name Overhead Distribution Rack, 4-Post, 6RU, #12-24 Threaded E-Rails, Black Product Type Overhead Distribution Rack
Application/Usage Data Center, Server, Telecommunication Material Steel
Color Black Depth 30" Form Factor Rack Mount Height 14.3" Maximum Weight Capacity 149.91 lb Rack Height 6U Rack Width 19" Width 20.3"
Finishing Powder Coated Mount Type Rack Mount
Limited Warranty 1-Year
Assembly Required Yes Environmental Certification RoHS Environmentally Friendly Yes Features Adjustable Depth Package Contents - 2 x 6RU Rack Channels
- 2 x Ceiling Mount Hat Channels
- 2 x Strut Channel Mounting Brackets
- Installation Instructions
