Panduit UTP6AX15BU TX6A CAT6a 24 AWG Patch Cord, 10 Gig UTP, 15', Blue
UTP6AX15BU|P9-TP6AX15BU
Panduit UTP6AX15BU TX6A CAT6a 24 AWG Patch Cord, 10 Gig UTP, 15', Blue
UTP6AX15BU|P9-TP6AX15BU
Key Features
- 100% performance tested : Confidence that each patch cord delivers specified performance
- Superior headroom warranty : Provides the highest margins above the industry standard for both electrical and alien crosstalk performance
- Flexible cable design : Improved cable management in high density applications enabling easier installations
Key Features
- 100% performance tested : Confidence that each patch cord delivers specified performance
- Superior headroom warranty : Provides the highest margins above the industry standard for both electrical and alien crosstalk performance
- Flexible cable design : Improved cable management in high density applications enabling easier installations
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 100% performance tested : Confidence that each patch cord delivers specified performance
- Superior headroom warranty : Provides the highest margins above the industry standard for both electrical and alien crosstalk performance
- Flexible cable design : Improved cable management in high density applications enabling easier installations
Panduit
Panduit UTP6AX15BU TX6A CAT6a 24 AWG Patch Cord, 10 Gig UTP, 15', Blue
UTP6AX15BU | P9-TP6AX15BU
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

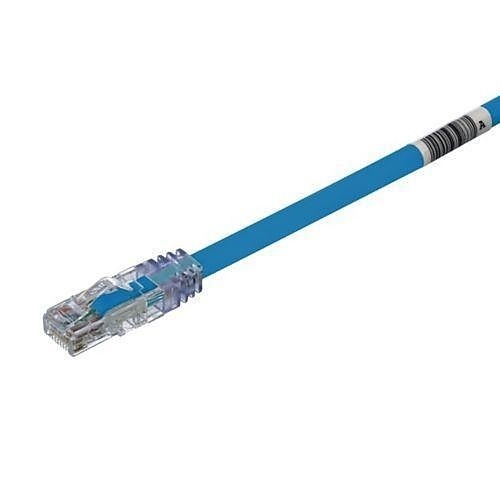

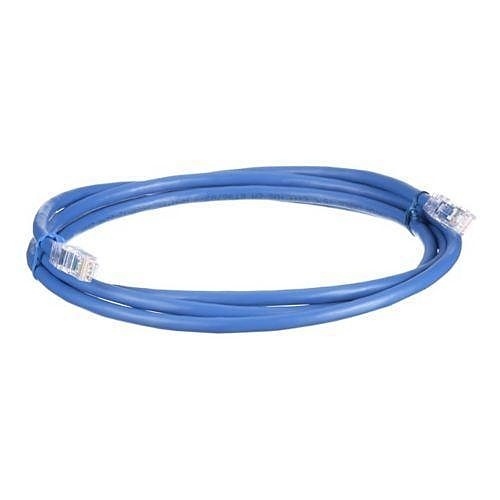

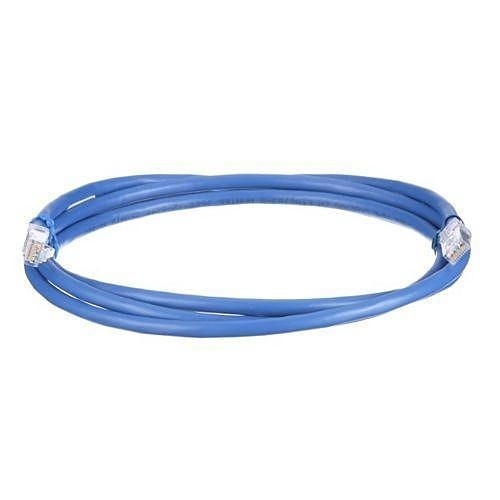

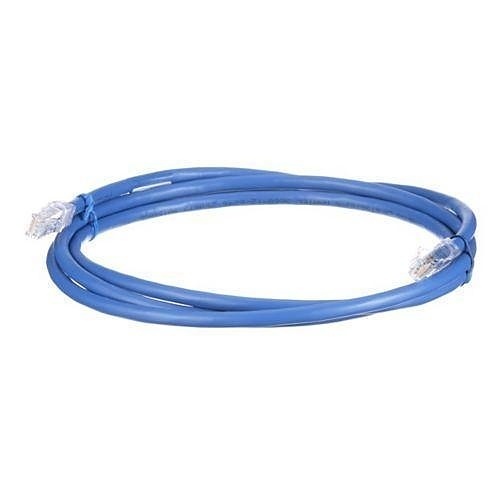

The TX6A™ 10Gig UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, solid, CM cable with enhanced performance modular plugs. The patch cord offers a small 0.250 inch (6.4mm) cable diameter. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord's slender strain relief boot provides easy access in high-density applications. The patch cord is 15 feet and blue.
Main Features
- 100% performance tested : Confidence that each patch cord delivers specified performance
- Superior headroom warranty : Provides the highest margins above the industry standard for both electrical and alien crosstalk performance
- Flexible cable design : Improved cable management in high density applications enabling easier installations
- Center de-embedded plug : Performs in center of ANSI/TIA-568.2-D component range ensuring interoperability and superior performance
- Integral pair manager : Optimizes performance, consistency, and reliability by reducing untwist at plug
- Patented tangle-free latch : Prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds, and changes
- Slender strain relief boot : Provides easy access in high-density applications
- Robust construction : Rated to 2500 mating cycles
- Identification : Provides identification of performance level, length, and quality control number for future traceability
- Variety of cable colors and lengths : Meets individual length and color-coding requirements for greater system flexibility
General Information
Name: Panduit UTP6AX15BU TX6A CAT6a 24 AWG Patch Cord, 10 Gig UTP, 15', Blue
Category: Panduit, Wire & Cable, Network Patch Cables, Category 6A Patch Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P9-TP6AX15BU Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number UTP6AX15BU Packaged Quantity 1 Product Line TX6A 10Gig Product Name Cat 6A 24 AWG UTP Copper Patch Cord, 15 ft, Blue Product Type Network Cable
-
American Wire Gauge 24AWG Cable Type Category 6a Contact Plating Gold Device Supported Network Device, Server Jacket Material PVC Jacket Type CM Shielding No
-
Data Transfer Rate 10 Gbit/s
-
Cable Length 15' Color Blue Material Copper
-
Limited Warranty 1-Year
-
Country of Origin CR Environmentally Friendly Yes Features Alien Cross Talk (AXT), Booted, Flexible, Latching Connector, MaTriX Technology, PoE, PoE+, PoE++, Strain Relief, Stranded, Tangle-free
