Panduit UTP6AX15YL TX6A CAT6a 24 AWG Patch Cord, 10 Gig UTP, 15', Yellow
UTP6AX15YL
|P9-TP6AX15YL
Shop All Panduit
Panduit UTP6AX15YL TX6A CAT6a 24 AWG Patch Cord, 10 Gig UTP, 15', Yellow
UTP6AX15YL | P9-TP6AX15YL
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

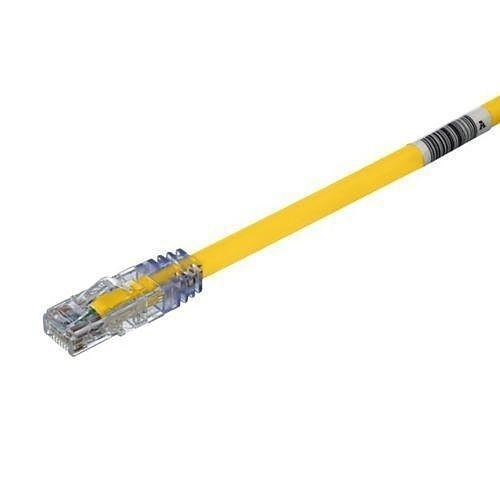

The TX6A™ 10Gig UTP Patch Cord is constructed of 24 AWG solid copper cable with an enhanced performance modular plug on each end. The conductors are twisted in pairs and separated by a quadrant separator. All four pairs are surrounded by solid foil tape and a flame retardant jacket. The tape suppresses alien crosstalk and allows 10 Gb/s transmission. The patented tangle-free latch prevents snags and provides easy release to provide reliability. This patch cord is 15 feet and available in yellow.
Main Features
- 100% performance tested : Confidence that each patch cord delivers specified performance
- Superior headroom warranty : Provides the highest margins above the industry standard for both electrical and alien crosstalk performance
- Flexible cable design : Improved cable management in high density applications enabling easier installations
- Center de-embedded plug : Performs in center of ANSI/TIA-568.2-D component range ensuring interoperability and superior performance
- Integral pair manager : Optimizes performance, consistency, and reliability by reducing untwist at plug
- Patented tangle-free latch : Prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds, and changes
- Slender strain relief boot : Provides easy access in high-density applications
- Robust construction : Rated to 2500 mating cycles
- Identification : Provides identification of performance level, length, and quality control number for future traceability
- Variety of cable colors and lengths : Meets individual length and color-coding requirements for greater system flexibility
General Information
Name: Panduit UTP6AX15YL TX6A CAT6a 24 AWG Patch Cord, 10 Gig UTP, 15', Yellow
Category: Panduit, Wire & Cable, Network Patch Cords, Category 6A Patch Cords
UPC Code: 613056772083
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-TP6AX15YL Brand Name Panduit Country of Origin CR Manufacturer PANDUIT CORP Manufacturer Part Number UTP6AX15YL Product Line TX6A 10Gig Product Name Patch Cord, 24 AWG, Cat. 6A, RJ45, 15 ft., Yellow Product Type Network Cable
American Wire Gauge 24AWG Cable Type Category 6a Contact Plating Gold Device Supported Network Device, Server Jacket Type Standard
Data Transfer Rate 10.00Gbps
Cable Length 15.00' Color Yellow Jacket Material PVC Material Copper
Limited Warranty 1-Year
Environmentally Friendly Yes Features Alien Cross Talk (AXT), Booted, Flexible, Latching Connector, MaTriX Technology, PoE, PoE+, PoE++, Strain Relief, Stranded, Tangle-free
