Panduit ISTPH6X1MTL IndustrialNet CAT6A Shielded Patch Cord
ISTPH6X1MTL
|P9-TPH6X1MTL
Shop All Panduit
Panduit ISTPH6X1MTL IndustrialNet CAT6A Shielded Patch Cord
ISTPH6X1MTL | P9-TPH6X1MTL
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

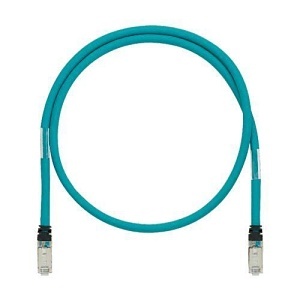

The IndustrialNet™ Cat 6A Shielded Patch Cord is constructed of industrial grade, 26 AWG, SF/UTP, twisted pair, stranded, CMR cable with industrial bulkhead modular plugs with black strain relief boots. It is designed to support high-flex applications and is rated for 600 V panel or on-machine applications where space is shared with high voltage power cables. The patch cord is 1 meter in length and teal.
Main Features
- Robust 600V-rated construction: Allows for patch runs between automation devices in industrial environments; rated for 600V panel or on-machine applications when the space is shared with high voltage power cables; plug contact plated with 50 micro-" of gold
- 100% performance tested for wire map, NEXT, and return loss:Factory testing provides confidence that each patch cord delivers specified performance
- Centered de-embedded plug:Performs in center of ANSI/TIA-568-C.2 component range, ensuring interoperability and optimum performance
- Integral pair manager: Optimizes performance and consistency by reducing untwist at the plug
- Flexible stranded cable: 26 AWG stranded copper cable with a nominal diameter of 7.4mm (0.29 in.) allows for high density applications and superior panel cable management
- Identification provides for future traceability:Identification of performance level, length, and quality control number is provided on each cord
General Information
Name: Panduit ISTPH6X1MTL IndustrialNet CAT6A Shielded Patch Cord
Category: Panduit, Wire & Cable, Network Patch Cords, Category 6A Patch Cords
UPC Code: 613056571778
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-TPH6X1MTL Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number ISTPH6X1MTL Packaged Quantity 1 Product Name Industrial Cat 6A Shielded 600 V Patch Cord, 1m Product Type Network Cable
American Wire Gauge 26AWG Cable Type Patch Cable Contact Plating Gold Device Supported Control Panel, Network Device, Patch Panel, Switch Jacket Type Standard Shielding Yes Solid or Stranded Stranded
Data Transfer Rate 1.00Gbps
Cable Length 3.28' Color Black
Compatibility Panduit CDPP8RG Modular Patch Panel Environmentally Friendly Yes Features EMI/RF Protection, Flexible, Minimized Near-End Crosstalk (NEXT), PoE+, Strain Relief, Stranded
