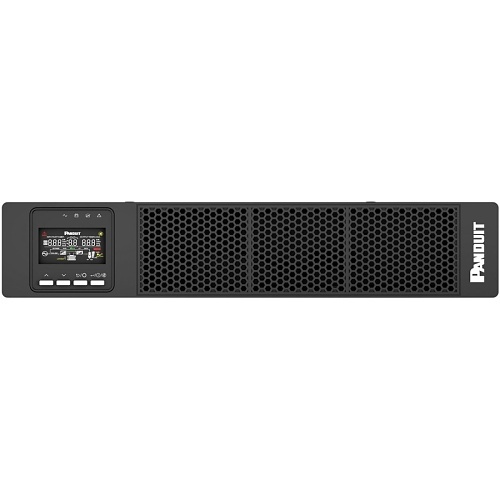

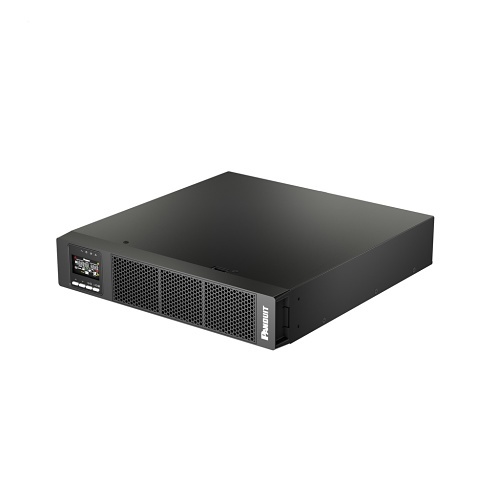

Panduit U01S11L SMARTZONE Uninterruptible Power Supply, 1KVA, 2U, 120V, Single Phase
U01S11L
|P9-U01S11L
Shop All Panduit
Panduit U01S11L SMARTZONE Uninterruptible Power Supply, 1KVA, 2U, 120V, Single Phase
U01S11L | P9-U01S11L
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Panduit ® SmartZone™ Intelligent Rack UPS with compact, high capacity, and long life Lithium Ion battery, 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
Main Features
- Rack/Tower convertible: Support rack/tower installation with rotatable colorful LCD display
- Online Double Conversion with fully digital control (EMEA unit only): Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: (110-300V AC Online models) (75-146V AC Line Interactive models), covering more voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency: Up to 96.5% for Online models and up to 97% for Line-interactive models, reducing the energy waste and the cost of electricity
- Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
- Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
- Output unity power factor: Means more active power for IT equipment load
- Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Intelligent Battery Management: The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
- EPO function (Emergency Power Off): Allows to quickly and easy shut down the UPS when emergency event occurs
General Information
Name: Panduit U01S11L SMARTZONE Uninterruptible Power Supply, 1KVA, 2U, 120V, Single Phase
Category: Panduit, Batteries & Power Supplies, Power Management, UPS
UPC Code: 613056825086
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-U01S11L Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number U01S11L Product Line SmartZone Product Model U01S11L Product Name SmartZone U01S11L 1000VA Rack/Tower UPS Product Type Line-interactive UPS Sector Data Comm & Networking
Application/Usage Computer, Data Center, Edge Computing, Enterprise, IT Equipment AVR Yes Dataline Protection RJ-45 Hot Swappable Yes Output Voltage 100V AC, 110V AC, 115V AC, 120V AC, 125V AC Overload Protection Yes Phase Single Phase Receptacle Detail 6 x NEMA 5-15R Receptacle Type NEMA 5-15R Transfer Time 6-Millisecond
Battery Chemistry Lithium-Ion (LiFePO4) Battery Life 10 Year Battery Recharge Time 4-Hour DC System Voltage 25.6 Replaceable Battery Yes
Energy Star Yes
Status Indicators Yes
Maximum Operating Elevation 9842.52' Maximum Operating Temperature 104°F (40°C) Sound Emission 55 dB Thermal Dissipation 27.84W
EPO Port Yes Network (RJ-45) Yes Serial Port Yes
Alarm Yes
Color Green Depth 18.1" Form Factor Compact, Rack, Rail Mount, Tower Height 3.4" Rack Height 2U Weight 31.31lb Width 17.3"
Input Frequency 60Hz Input Voltage 75-146V AC Output Frequency 60Hz Plug/Connector Type NEMA 5-15P Waveform Type Pure Sine Wave
Mount Type Compact, Rack, Rail Mount, Tower
Additional Warranty Information 5 Years (UPS & Battery) Limited Warranty 5-Year
Environmentally Friendly Yes
