Key Features
- Rack/Tower convertible: Supports rack /tower installation with rotatable colorful LCD display
- Online Double Conversion with fully digital control: Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: 110-300V AC for EU units and 55-150V AC for NA units, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
Key Features
- Rack/Tower convertible: Supports rack /tower installation with rotatable colorful LCD display
- Online Double Conversion with fully digital control: Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: 110-300V AC for EU units and 55-150V AC for NA units, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Rack/Tower convertible: Supports rack /tower installation with rotatable colorful LCD display
- Online Double Conversion with fully digital control: Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: 110-300V AC for EU units and 55-150V AC for NA units, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Panduit ® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR ® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
Main Features
- Rack/Tower convertible: Supports rack /tower installation with rotatable colorful LCD display
- Online Double Conversion with fully digital control: Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: 110-300V AC for EU units and 55-150V AC for NA units, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency: Up to 96.5%, reducing the energy waste and the cost of electricity
- Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
- Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
- Output unity power factor: Means more active power for IT equipment load
- Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Expandable battery packs: Allows to connect maximum four external battery packs, extending the UPS backup running time
- Intelligent Battery Management: The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
General Information

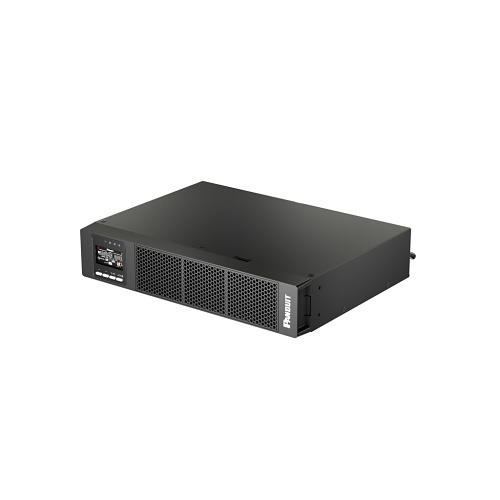

Name: Panduit U01S13V SmartZone UPS, 1kVA, VRLA, 120V
Category: Panduit, Batteries & Power Supplies, Power Management, UPS
UPC Code: 613056833982
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-U01S13V Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number U01S13V Product Line SmartZone Product Model U01S13V Product Name SmartZone U01S13V 1000VA Rack/Tower UPS Product Type Double Conversion Online UPS Sector Data Comm & Networking Weight 27.34lb
AVR Yes Battery Size 12V Dataline Protection RJ-45 Hot Swappable Yes Number of Batteries 2 Output Voltage 100V AC, 110V AC, 115V AC, 120V AC, 125V AC Overload Protection Yes Phase Single Phase Receptacle Detail 6 x NEMA 5-15R Receptacle Type NEMA 5-15R
Battery Capacity 9Ah Battery Chemistry Sealed Lead Acid (VRLA) Battery Life 5 Year DC System Voltage 24 Replaceable Battery Yes
Energy Star Yes
Status Indicators Yes
Maximum Operating Elevation 9842.52' Maximum Operating Temperature 104°F (40°C) Sound Emission 55 dB Thermal Dissipation 117.23W
EPO Port Yes Network (RJ-45) Yes Serial Port Yes
Application/Usage Computer, Data Center, Edge Computing, Enterprise, IT Equipment Color Green Depth 12.8" Form Factor Rack, Rail Mount, Tower Height 3.4" Rack Height 2U Width 17.3"
Input Frequency 70Hz Input Voltage 120V AC Output Frequency 60Hz Plug/Connector Type NEMA 5-15P Waveform Type Pure Sine Wave
Limited Warranty 5-Year
Environmentally Friendly Yes
