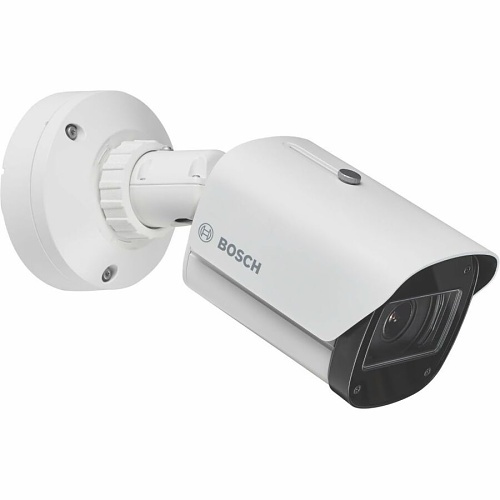

Bosch NBE-7703-ALX DINION 7100i Series 4MP Bullet Camera, 4.7-10mm Lens, IP66, White
NBE-7703-ALX
|PB-NBE7703AL
Shop All Bosch
Bosch NBE-7703-ALX DINION 7100i Series 4MP Bullet Camera, 4.7-10mm Lens, IP66, White
NBE-7703-ALX | PB-NBE7703AL
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The NBE-7703-ALX is an extremely robust bullet camera for mission-critical applications. The ruggedized and stable design has exceptional corrosion resistance for use in any outdoor application. Using 1/1.8" sensors with 4MP resolution, the NBE-7703-ALX provides the perfect balance between high resolution and extreme low light sensitivity. Starlight X and HDR X technology combined with powerful intelligent IR illumination ensure highly detailed images even in the most challenging situations. The cameras have a powerful, embedded processor with dedicated hardware to support advanced machine learning and deep neural network-based Video Analytics.
Specifications
ADI Part Number PB-NBE7703AL Brand Name Bosch Manufacturer Bosch Manufacturer Part Number F.01U.390.688 Product Line Dinion Product Model NBE-7703MP-ALXT Product Name NBE-5703 mP-AL Bullet5 mPMP HDR3 mP.2 mP-10 mP.5 mPmm IP66 mP/67 mPIK10 mP Product Series 7100i Product Type Camera
Connectivity Technology Wired Effective Camera Resolution 5MP Field of View Horizontal, Vertical Field of View (Horizontal) 96° Field of View (Vertical) 71° Lens Type Varifocal Maximum Aperture f/1.35 Maximum Frame Rate 60fps Minimum Focal Length 2mm Night Vision Yes Night Vision Type Infrared Optical Zoom 2.1x Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Night Vision Distance 262.47 ft Wide Dynamic Range Yes
Ingress Protection Rating IP66MP
Maximum Video Resolution 2688 x 1520
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 1
Network (RJ-45) Yes
Focal Length 4.7-10mm Lens Included Yes Maximum Focal Length 10mm Minimum Aperture f/1.97
Remote Management Yes
Color White Durability Corrosion Resistant, Dust Resistant, Impact Resistant, Rain Resistant, Tamper Resistant, Waterproof Form Factor Bullet Height 4.5" Weight 5-51lb
Input Voltage 24V AC, 26V DC
Diameter 5-83" Mount Type Surface Mount
Storage Type Memory Card
Maximum Resolution 1280 x 720
Country of Origin PT Environmental Certification RoHS, WEEE Environmentally Friendly Yes Features Alarm Triggering, Audio Compression, Auto Gain Control, Automatic White Balance, Built-in Motor Control, Day/Night, Mirror, Privacy Masking, Surge Protection, Tamper Detection, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Indoor, Outdoor Package Contents 1 Desicant, 1 Mounting plate, 1 NBE-5703 -AL camera, 1 Quick Installation Guide, 1 RJ45 guider, 1 Safety information, 1 Secure screw (pre-installed in the camera), 1 TR20 Allen Key, 2 Grommets (pre-installed in the camera’s bottom cover), 2 Rubbers for conduit, 2 Terminal connectors (8 -pin,2 -pin) for audio/alarm/power, 3 Installer UX labels
