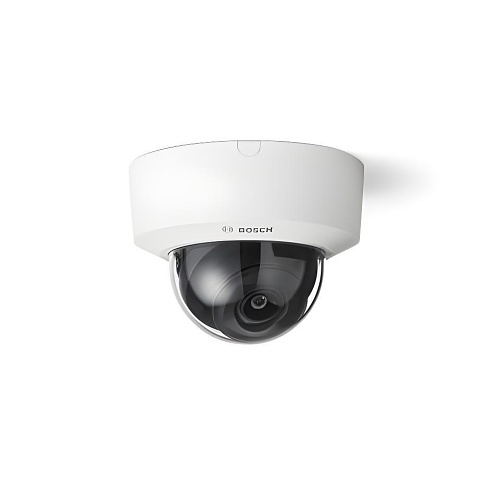

Bosch NDI-3702-A FLEXIDOME 3100i Series 2MP Indoor Fixed Dome Camera, 3.3-10.2mm Lens, White
NDI-3702-A
|PB-NDI3702A
Bosch NDI-3702-A FLEXIDOME 3100i Series 2MP Indoor Fixed Dome Camera, 3.3-10.2mm Lens, White
NDI-3702-A | PB-NDI3702A
Please sign in to view pricing, availability, and to add to cart.
Product Overview
The FLEXIDOME indoor 3100i is a versatile camera for general indoor surveillance monitoring. The 2MP sensor, along with an integrated varifocal lens, provides a sharp and detailed image with a flexible field of view. The device features built-in IVA Pro Buildings, bringing highly reliable deep learning-based detection which only triggers relevant alarms.
The device is also secured with TPM (Trusted Platform Module) functionality, ensuring safe storage of all certificates and keys needed for authentication and encryption. The camera design snaps on without visible screws, making installation fast and easy. An extensive range of compatible accessories enables various mounting options.
Main Features
- 1080p HD resolution
- IVA Pro Buildings brings reliable deep-learning based detection of persons and vehicles
- High Dynamic Range (HDR) to see every detail in both bright and dark areas of the scene
- Built-in Secure Element with Trusted Platform Module (TPM)
- Click mechanism making installation fast and easy
General Information
Specifications
ADI Part Number PB-NDI3702A Brand Name Bosch Manufacturer Part Number F.01U.406.608 Product Line FlexiDome Product Name Fixed Dome 2MP 3.3-10.2mm Product Series 3100i Product Type Surveillance Camer
Effective Camera Resolution 2MP Field of View Horizontal, Vertical Field of View (Horizontal) 106° Field of View (Vertical) 55.2° Lens Type Varifocal Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 3.3mm Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Wide Dynamic Range Yes
Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 104°F Minimum Operating Temperature 32°F Operating Humidity 0.95
Longest Shutter Speed 1/25 Second Minimum Illumination 0.016 lux, 0.06 Shortest Shutter Speed 1/15000 Second
Focal Length 3.3-10.2mm Lens Included Yes Maximum Focal Length 10.2mm Minimum Aperture f/3.29
Color White Durability Impact Resistant Height 4.09" Weight 0.91lb
Diameter 5.39" Mount Type Surface Mount
Storage Type Memory Card
Country of Origin TH Environmental Certification RoHS, UL, WEEE Impact Protection Rating IK08 Indoor/Outdoor Indoor Package Contents 1 FLEXIDOME indoor 3100i device, 1 Mounting template, 1 Quick Installation Guide, 1 Safety and security information, 1 TR20 key, 3 Installer UX label
