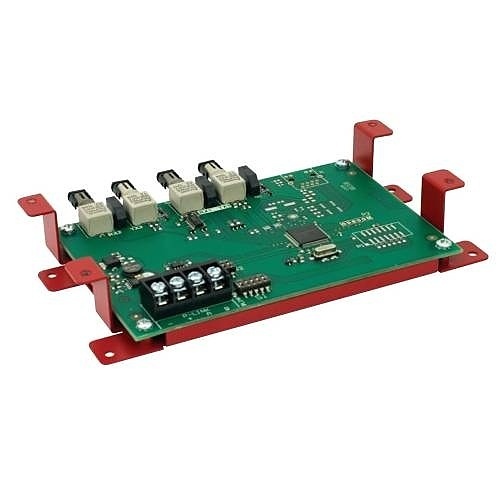

Image of PL-FIB1000

Potter FIB-1000 Fiber Interface Bridge, Class and Class Operation

FIB-1000|PL-FIB1000

Potter FIB-1000 Fiber Interface Bridge, Class and Class Operation

FIB-1000|PL-FIB1000
Key Features
  • Allows RS-485 (P-Link) circuit to be converted to/from fiber optic cable
  • Class B or Class A operation
  • Uses 62.5/125 micron multi-mode fiber optic cable, tolerates up to 12 dB of signal loss (wave length 820 nm)
Key Features
  • Allows RS-485 (P-Link) circuit to be converted to/from fiber optic cable
  • Class B or Class A operation
  • Uses 62.5/125 micron multi-mode fiber optic cable, tolerates up to 12 dB of signal loss (wave length 820 nm)

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Allows RS-485 (P-Link) circuit to be converted to/from fiber optic cable
  • Class B or Class A operation
  • Uses 62.5/125 micron multi-mode fiber optic cable, tolerates up to 12 dB of signal loss (wave length 820 nm)
Potter Electric Signal, LLC

Potter FIB-1000 Fiber Interface Bridge, Class and Class Operation

FIB-1000 | PL-FIB1000

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The FIB-1000 Fiber Interface Bridge allows the RS-485 P-Link bus to be converted into or from the fiber optic cable. It is fully supervised and is capable of both Class B and Class A operation. The FIB-1000 may be mounted in either the control panel cabinet, the intelligent power supply/P-Link repeat, the PSN-1000/E, the AE-8 or AE-14 accessory enclosure. The FIB-1000RM includes a 19" rack-mount kit for installation in an equipment rack. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.

Main Features

  • Allows RS-485 (P-Link) circuit to be converted to/from fiber optic cable
  • Class B or Class A operation
  • Uses 62.5/125 micron multi-mode fiber optic cable, tolerates up to 12 dB of signal loss (wave length 820 nm)
  • Mounts with included stacker bracket
  • Mounts in panel, accessory cabinet or PSN-1000/E Power Supply
  • Optional FIB-1000RM 19" rack mount model available
  • Maximum of 30 FIB-1000s per panel
  • UUKL Listed for Smoke Control

General Information

Name: Potter FIB-1000 Fiber Interface Bridge, Class and Class Operation
Category: Potter Electric Signal, LLC, Fire, Fire Control Panels, Control Panel Modules
UPC Code: 785192021742
Country of Origin: . Country of origin is subject to change.
