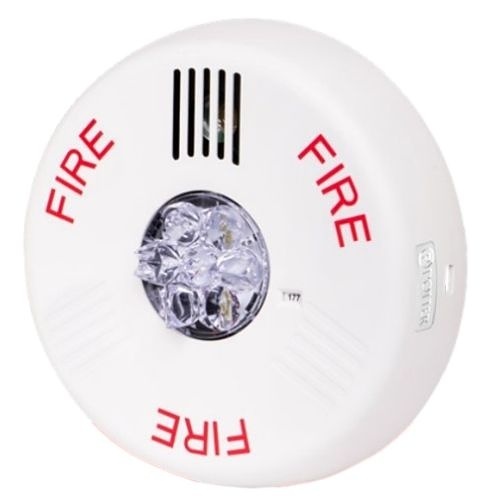

Potter PE-STWC PE Series LED Strobe, Ceiling Mount, FIRE Label, White
PE-STWC
|PL-PESTWC
Shop All Potter Electric Signal, LLC
Potter PE-STWC PE Series LED Strobe, Ceiling Mount, FIRE Label, White
PE-STWC | PL-PESTWC
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Potter PE Series feature advanced LED technology with a range of low and high candela settings for indoor wall and ceiling-mount applications. Crafted with a low-profile design, these devices seamlessly complement building interiors. Rich in features, the devices offer 6 candela settings and 3 horn patterns within a single unit. Installation is simplified with pre-wire / pre-test capabilities via a hinged mounting plate. Wall models follow a single-gang design, allowing tool-free setting changes. The PE Series is designed for 24V operations.
Main Features
- LED Technology for energy efficiency
- 3-Horn patterns (Continuous, T3, T3/T4) for fire and CO signaling in one device
- Strobe synchronization with Potter fire alarm control panels and power supplies. Ability to mix xenon and LED strobes in the same field of view
- 6 field selectable candela settings: • Wall 15 cd - 185 cd / ceiling 15 cd - 177 cd
- Field selectable speaker settings: 1/8 W up to 2 W
- 5 year warranty
- Wire Gauge: # 12 through # 18 AWG
- Operating Temp: 32°F to 122°F (0°C to 50°C) maximum humidity 93%
- Operating Voltage: 25/70 VRMS; Strobe: 24VDC/24VFWR
- Weight: Wall and ceiling speaker strobe: 1.54 lbs (700g)
General Information
Name: Potter PE-STWC PE Series LED Strobe, Ceiling Mount, FIRE Label, White
Category: Potter Electric Signal, LLC, Fire, Fire Notification Devices, Horns
UPC Code: 786697700064
Country of Origin: Romania. Country of origin is subject to change.
Specifications
ADI Part Number PL-PESTWC Brand Name Potter Electric Signal, LLC Manufacturer Potter Electric Signal, LLC Manufacturer Part Number PE-STWC Product Model PE-STWC Product Name Strobes Product Series PE Product Type LED Horn Strobe
ADI Part Number Replaces PL-HS24WR Model Number Replaces HS-24WR
Color White Lens Color Clear
Mount Type Ceiling Mount
Indoor/Outdoor Indoor
