Potter VSG-4 4" Low Flow 3 Gpm Water Flow Indicator
VSG-4|PL-VSG4
Potter VSG-4 4" Low Flow 3 Gpm Water Flow Indicator
VSG-4|PL-VSG4
Potter Electric Signal, LLC
Potter VSG-4 4" Low Flow 3 Gpm Water Flow Indicator
VSG-4 | PL-VSG4
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

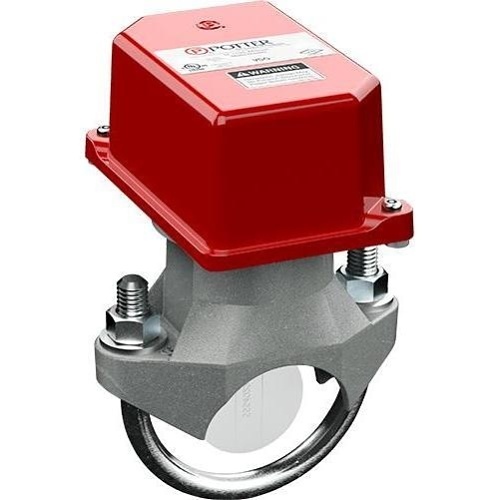

The Model VSG is a flexible vane type of waterflow switch for use in wet pipe water mist systems where a low flow for alarm is required. It is designed for installation in sections of 2 to 4 inch (50mm to 100mm) stainless steel or brass pipe with wall thickness in accordance with the above specifications (see "Nominal OD and Wall Thickness"). The unit may also be used as a sectional waterflow detector on large systems. The unit contains an output relay and an adjustable electronic retard. The relay is actuated when a flow of 3 gallons per minute (11,4 LPM) or more occurs downstream of the device. The flow condition must exist for a period of time necessary to overcome the selected retard period.
Main Features
- 0-90 second field replaceable electronic time delay retard
- Easy to adjust electronic time delay
- Two DPDT (form C) contacts
- Weatherproof
- Easy to read wire terminal designations
General Information
Name: Potter VSG-4 4" Low Flow 3 Gpm Water Flow Indicator
Category: Potter Electric Signal, LLC, Fire, Water Flow Controls
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number PL-VSG4 Brand Name Potter Electric Signal, LLC Manufacturer Part Number VSG-4
Limited Warranty 5-Year
