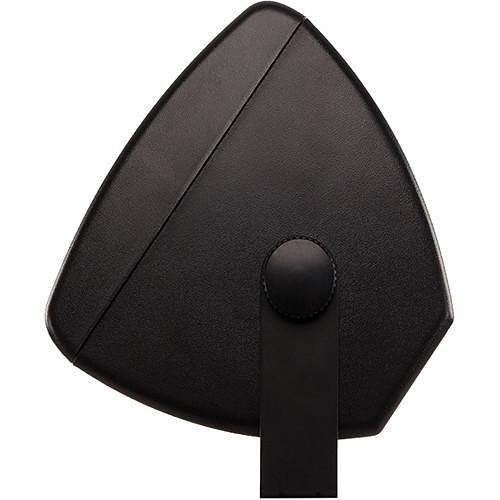

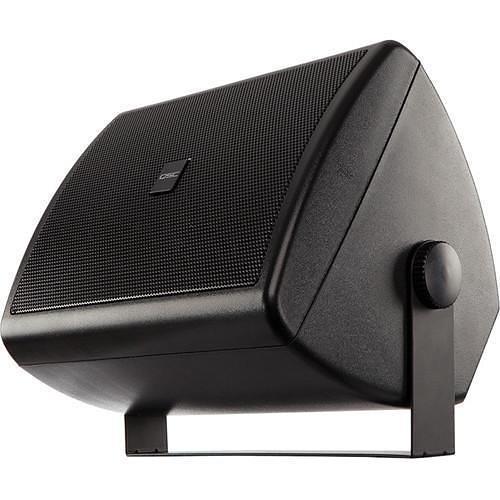

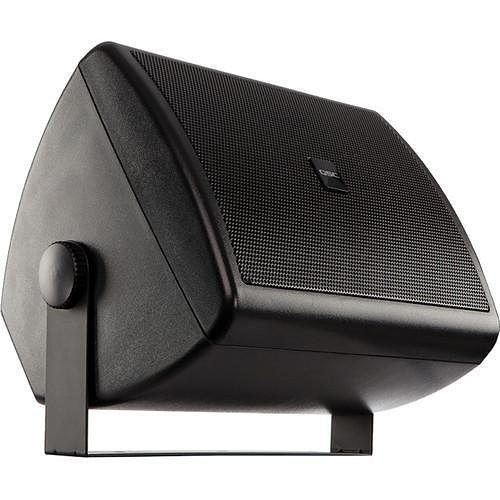

QSC AC-S4T-BK Surface Mounted 4.5" 2-Way 130° Conical Loudspeaker, Black
AC-S4T-BK
|QB-ACS4TBK
Shop all QSC
QSC AC-S4T-BK Surface Mounted 4.5" 2-Way 130° Conical Loudspeaker, Black
AC-S4T-BK | QB-ACS4TBK
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The QSC AcousticCoverage AC-S4T is a surface mounted 4" two-way loudspeaker with 70/100V transformer, suitable for a wide variety of voice paging and background music sound reinforcement applications. AcousticCoverage is designed to offer integrators a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical BGM class products. A high quality 100 mm [4"] polypropylene cone transducer with butyl rubber surround and a 25 mm [1"] aluminium dome tweeter offers pristine clarity through the critical vocal range for increased speech intelligibility. With 130 degrees of conical coverage, the AC-S4T reduces the number of loudspeakers required for even coverage in close proximity. The UV treated high impact ABS enclosure and ported baffle assembly has been optimally tuned for added musicality, creating low frequency extension down to 70 Hz. To maintain this frequency response, the AC-S4T utilizes a 16W low-saturation and low-loss 70/100V transformer with varying selectable taps, including an 8ohms bypass. To further enhance performance and speed of install with optimum result, advanced voicing via QSC Intrinsic Correction techniques are obtainable using Q-Sys networked audio processing platforms, including CXD amplifiers for a complete QSC systems solution. Installers will appreciate the 4-pole Euroblock connector for loop thru wiring, located on the rear of the enclosure. Eliminating the termination hassles of star topology wiring designs, the generous Euroblock of the AC-S4T can accept four 18AWG pairs. The AC-S4T features brass inserts to accept the included yoke mount and is secured using the supplied thumb bolts. The grille is adorned with a spring loaded and rotatable logo for installation convenience in either horizontal or vertical deployments. The AC-S4T is available in white (RAL 9010) or black (RAL 9011) to match complimenting QSC product families . The AC-S4T may also be painted to match any décor. To assist in successful systems integration, complete EASE, CAD and BIM files are available for download online.
Main Features
- High quality transducers provide exceptional clarity through the critical voice range
- Improved musicality often not seen in typical BGM class products
- Ported baffle for increased low frequency extension down to 70 Hz
- Low saturation 70/100V transformers with 8 ohm bypass
- 4-pole Euroblock connector eases system wiring
- Advanced voicing via QSC Intrinsic Correction, applied using Q-Sys processing or CXD amplifier platforms
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CAD and BIM information available online
General Information
Name: QSC AC-S4T-BK Surface Mounted 4.5" 2-Way 130° Conical Loudspeaker, Black
Category: QSC, Pro AV, Commercial Audio, Pro Speakers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number QB-ACS4TBK Brand Name QSC Manufacturer Part Number AC-S4T-BK Product Line AcousticCoverage Product Model AC-S4T-BK Product Series AC-S
Impedance 8 ohms
Maximum Frequency Response 20 kHz Minimum Frequency Response 70Hz RMS Output Power 16W Speaker Configuration 2
Color Black
Limited Warranty 3 Year
Package Contents Euroblock Connector, Limited 3-Year Manufacturer Warranty, QSC AC-S4T AcousticCoverage Series 4" 2-Way 16W Loudspeaker (Pair, Black), Yoke Mount System
