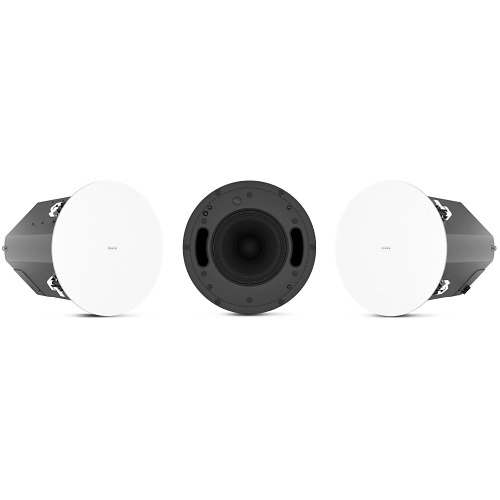

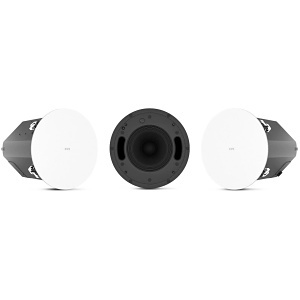

QSC AD-C8T-SWZB-WH 8" Ceiling Subwoofer with Bezel-Less Design, White
AD-C8T-SWZB-WH|QB-ADC8TSWZB
QSC AD-C8T-SWZB-WH 8" Ceiling Subwoofer with Bezel-Less Design, White
AD-C8T-SWZB-WH|QB-ADC8TSWZB
Key Features
- 8-in ceiling subwoofer with bezel-less design
- Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
- DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area
Key Features
- 8-in ceiling subwoofer with bezel-less design
- Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
- DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 8-in ceiling subwoofer with bezel-less design
- Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
- DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area

QSC
QSC AD-C8T-SWZB-WH 8" Ceiling Subwoofer with Bezel-Less Design, White
AD-C8T-SWZB-WH | QB-ADC8TSWZB
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Q-SYS AD-C8T-SWZB is an 8-in ceiling-mount subwoofer that expands the Q-SYS portfolio to enable a broad range of high-fidelity applications across hospitality, entertainment and beyond. AcousticDesign Series loudspeakers are designed with consistent tonal characteristics, allowing you to design to the needs of each unique space. Additionally, these ceiling loudspeakers feature a bezel-less, blind-mount design to meet modern architectural needs.
Main Features
- 8-in ceiling subwoofer with bezel-less design
- Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
- DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille

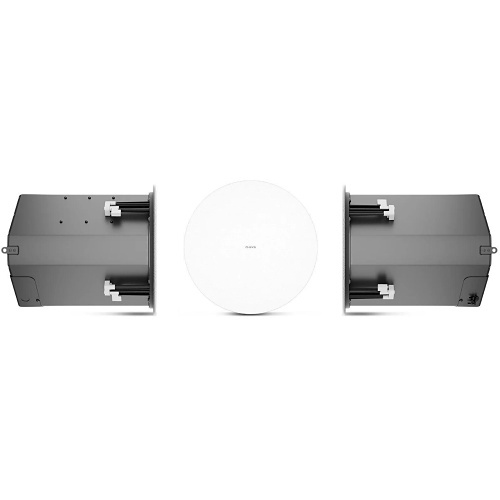

- 3x double stepped, long travel dog-ear blind mount system
- Intrinsic Correction voicings available via the Q-SYS Platform including CX-Q amplifiers
- Blemish-free removable logo
- Removable conduit cover plate, also available as accessory for pre-install wiring
- UL1480 and UL2043 certified
- Available in white (RAL 9003), with black grille accessory sold separately
General Information
Name: QSC AD-C8T-SWZB-WH 8" Ceiling Subwoofer with Bezel-Less Design, White
Category: QSC, Pro AV, Commercial Audio, Pro Subwoofers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number QB-ADC8TSWZB Brand Name QSC Manufacturer Part Number AD-C8T-SWZB-WH
-
Color White Depth 13.75" Height 13.5" Width 13.5"
-
Mount Type Ceiling
-
Environmental Certification CE, RoHS, UL Environmentally Friendly Yes
