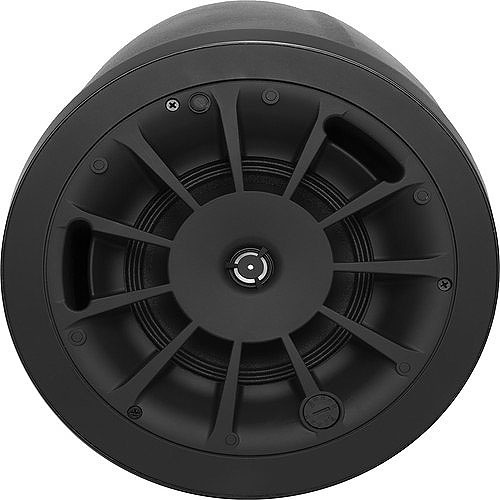

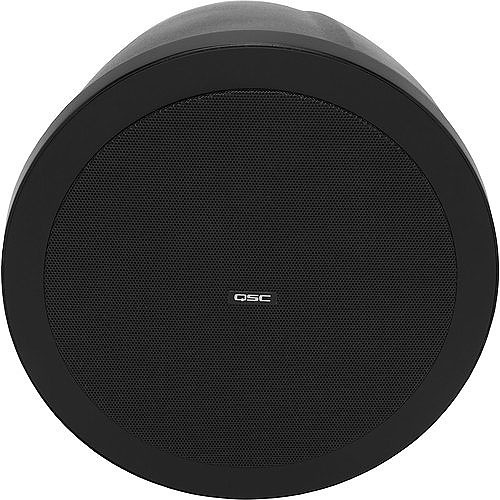

QSC AD-P4T-BK AcousticDesign Series 4.5" 2-Way 30W Pendant-Mount Loudspeaker, Black
AD-P4T-BK
|QB-ADP4TBK
Shop All QSC
QSC AD-P4T-BK AcousticDesign Series 4.5" 2-Way 30W Pendant-Mount Loudspeaker, Black
AD-P4T-BK | QB-ADP4TBK
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The QSC AcousticDesign™ AD-P4T is a 4.5-inch two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16Ω bypass configurations.
Main Features
- Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
- Directivity Matched Transition (DMT)waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- 2x quick-link suspension cables and slip-lock fasteners provided
- Intrinsic Correction™ voicings available via Q-SYSEcosystem and CXD amplifiers
- Low-saturation and low-loss 70/100V transformers with 16Ω bypass
- Blemish-free removable logo
- Sealable input cover to prevent moisture from entering the input terminal block
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, and BIM information available online
General Information
Name: QSC AD-P4T-BK AcousticDesign Series 4.5" 2-Way 30W Pendant-Mount Loudspeaker, Black
Category: QSC, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 684284067586
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number QB-ADP4TBK Brand Name QSC Country of Origin CN Manufacturer QSC Audio Manufacturer Part Number AD-P4T-BK Product Line AcousticDesign Product Model AD-P4T-BK Product Name QSC AD-P4T AcousticDesign Series 4.5" 2-Way 30W Pendant-Mount Loudspeaker (Black) Product Series AD-P Product Type Speaker
Crossover Type 2-way Impedance 16Ohm Speaker Size 4.50"
Sound Emission 108dB
Color Black Enclosure Type Sealed Weight 6.50lb
Mount Type Pendant Mount
Features 108 dB Peak Maximum SPL, 150° Conical Coverage, 30W RMS Power Handling, 4.5" Woofer, 0.75" Aluminum Dome Tweeter
