Product Overview
The Q-SYS Core 24f ushers in the next-generation of Q-SYS processing capabilities, delivering a fully integrated audio, video, and control solution that enables a blank canvas to deliver unique experiences across a broad range of application types. Combining the convenience of ample onboard I/O with robust processing and network I/O capacity, the Core 24f can serve a broad range of corporate, higher education, entertainment and hospitality applications requiring in-room processing.
Main Features
- 24 channels of analog I/O, including 8 software-definable flex channels
- 8 x 8 GPIO to integrate third-party device control connectivity
- Includes 8 x 8 Software-based Dante channels (licensable up to 64 x 64)
- 24x AEC channels @ 200 ms
- Integrated AV bridging via USB-C
- Two (2) 2.5 Gbps Ethernet ports for redundant networked audio (QLAN, AES67, VoIP, WAN, Media Streaming, etc.)
- Two (2) 2.5 Gbps independent, auxiliary Ethernet ports
- Supports up to eight (8) Q-SYS NM-T1 tabletop microphones
- Host up to 8 instances of a VoIP softphone
- Includes OLED front display
General Information

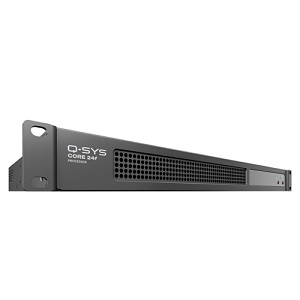

Name: QSC CORE 24F Q-SYS 24-Channel Network + Analog I/O Processor
Category: QSC, Pro AV, Commercial Audio, Pro Audio Processors
UPC Code: 684284088987
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number QB-CORE24F Brand Name QSC Manufacturer Part Number CORE 24F Product Line Q-SYS Product Model Core 24f Product Series Processor
Color Black Height 1.7" Weight 12.05lb Width 12.2"
Length 19"
Limited Warranty 3-Year
