QSC DPM-300H Audio Processor

Brand: QSC
ADI #:QB-DPM300H Model #: DPM-300H  Name: QSC DPM-300H Audio Processor
  • Ten digital inputs for 5.1 and 7.1 soundtracks and HI/VI
  • HDMI input/output for non-sync sources (DPM 300H)
  • Dolbsy Digital Plus and DTS-HD (DPM 300H)

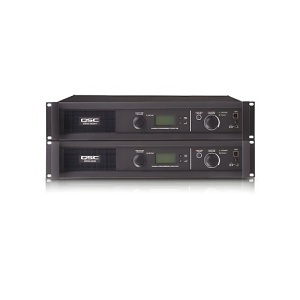

Image of QB-DPM300H

Product Overview

The DPM builds on the legacy of QSC’s DCM and DCP products to provide all signal processing and monitoring functions for Digital Cinema in a single integrated system. Designed to be used with QSC’s Digital Cinema Amplifiers (DCA) and featuring advanced Intrinsic Correction settings for QSC’s Digital Cinema Speakers (DCS), the DPM optimizes loudspeaker performance while simplifying cinema sound system wiring and configuration. The DPM 300 is configurable for passive, bi-amp, tri-amp and quad-amp operation and 2 or 4 surround channels (5.1 or 7.1).

General Information

Name : QSC DPM-300H Audio Processor , QSC
Category : Pro Audio Processors
UPC Code :
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : QB-DPM300H
Brand Name : QSC
Manufacturer : QSC
Manufacturer Part Number : DPM-300H
Product Model : DPM-300H
Product Name : DPM 300H Digital Processor/Monitor/Crossover
Product Series : DPM
Product Type : Digital Processor

Audio

Shipping Weight (Approximate) (g) : 8600

Physical Characteristics

Depth : 15"
Depth (mm) : 381
Height : 3.5"
Height (mm) : 88.9
Width : 19"
Width (mm) : 482.6

Power Description

Input Voltage : 100-240V AC
Power Source : AC
