Product Overview

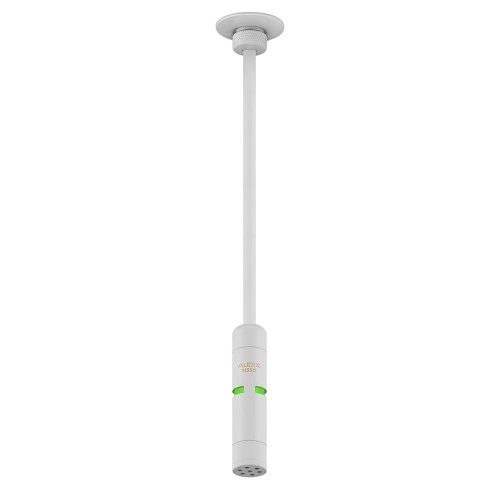

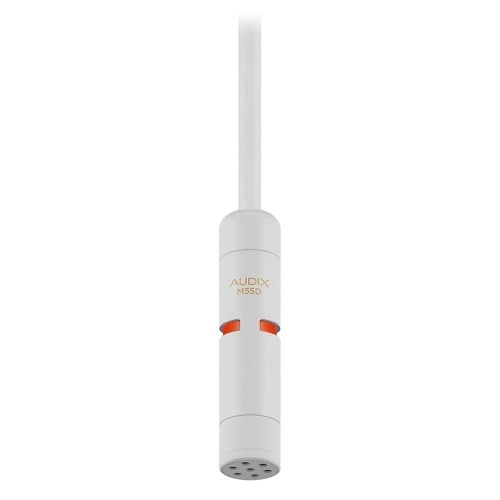

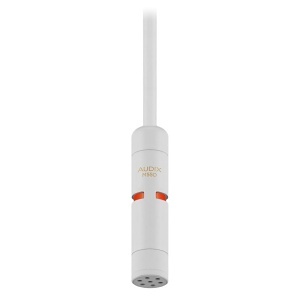

The M55 is an innovative, hanging ceiling microphone system designed for applications where aesthetics, sound quality, and ease of installation are critical. The primary applications for the ceiling mounted M55 include Video Teleconferencing (VTC), distance learning, hospital rooms, surveillance and ambient room miking. The M55 accommodates interchangeable capsules with cardioid, hypercardioid, omnidirectional and supercardioid (shotgun) coverage patterns. All electronics are fully integrated with high sensitivity and low noise. The signal output is balanced to eliminate RF interference caused by cell phones and mobile devices. Installing the M55 requires drilling just one 5/8-inch hole in the ceiling, with no additional tools needed. The M55’s mounting hardware easily adjusts the hanging height up to four feet from the ceiling surface without removing ceiling tiles. An optional aiming clip (MCHANGER) easily makes any additional angular adjustments. The cable assembly is equipped with terminal block connectors. For installations where plenum rated cable is to be used a UL rated, metal plenum junction box is available.
Main Features
- High output allows distance miking
- Optimized for voice recognition
- Immunity from RF interference
- Fingertip height adjustment and rotation control
- Low noise preamp circuitry
- Designed, assembled and tested in the USA
- 3 year warranty
General Information
Name: Audix M55WD Microphone with LED
Category: Audix, Pro AV, Commercial Audio, Pro Microphones, Headphones & Headsets
UPC Code: 687471151068
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number RA-M55WD Brand Name Audix Manufacturer Part Number M55WD
Impedance 150 ohms Polar Pattern Super-cardioid
Maximum Frequency Response 10 kHz Minimum Frequency Response 60 Hz
Length 479"
Limited Warranty 3-Year
